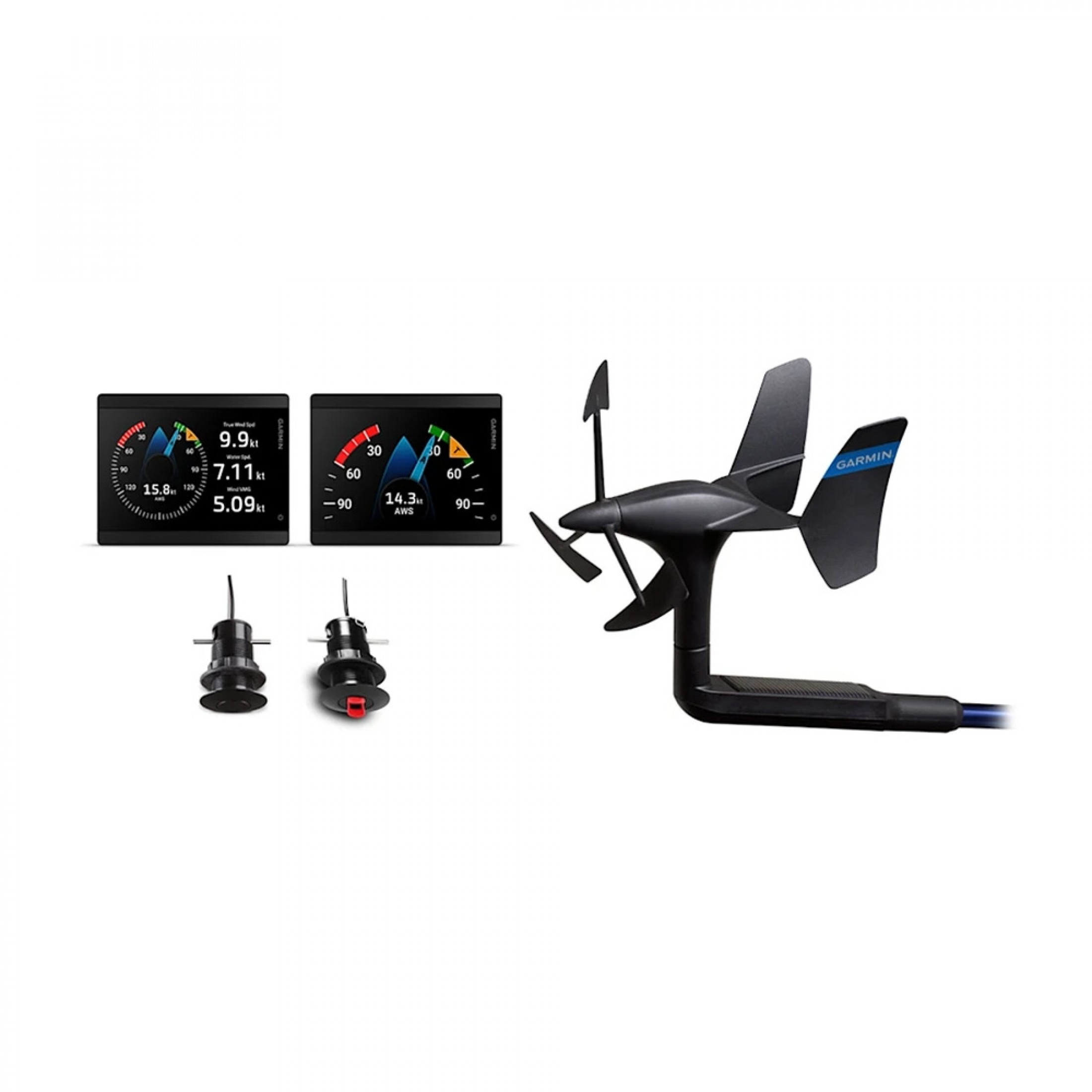

GMI™ 40 Wired Sail Pack – 43mm - 2 GMI 40 Marine Instruments, gWind™ Wireless 2 & GDT™ 43/GST™ 43

The GMI 40 is a compact, easy-to-use multipurpose marine instrument that displays real-time data from compatible devices on its high-resolution touchscreen.

Features:

• High-Resolution 4.3" touchscreen display
• Wirelessly connects to the gWind sensor plus GDT 43 and GST 43 transducers
• Supports real-time wind, speed, depth, heading, engine, fuel data, and more from your compatible devices
• Integrates with  NMEA 2000®  and Garmin Bluenet™ networks
• Software updates via Activecaptain® smartphone app
• Wirelessly shares data to your Garmin marine smartwatch

SLEEK & STREAMLINED

This modern touchscreen display has an intuitive interface and edge-to-edge glass that complements the look of your Garmin chartplotters.

COMPLETELY INTEGRATED

As an NMEA 2000-certified device, your GMI 40 marine instrument integrates smoothly with compatible systems across your boat.

SIMPLE YET CUSTOMIZABLE

Flexible gauge sets and page layouts let you place the data you need exactly where you want it.

A NETWORK YOU CAN TRUST

Garmin BlueNet offers streamlined connectivity with compatible Garmin devices for full-system integration.

SEAMLESS DATA

See the shift before you feel it with easy-to-read real-time wind, speed, depth, and heading insights from your compatible devices.

SIMPLIFIED ENGINE DATA

See engine and fuel data from your compatible devices at a glance to easily monitor levels and optimize performance.

Specifications:

• Dimension: 4.53" x 3.58" x 1.18" (115 mm x 91 mm x 30 mm)
• Weight: 0.53 lbs (240 g)
• Water rating: IPX7
• Display Type: WVGA, IPS LCD
• Display Size: 4.3" diagonal; 3.68" x 2.21" (109 mm diagonal; 93.6 mm x 56.2 mm)
• Display resolution: 800 x 480 pixels
• Mounting Options: Flush mount
• Input: Touchscreen
• Glass-bonded display
• Temperature range: From 5° to 158° F (from -15° to 70° C)
• Voltage range: 9 to 32 Vdc
• Power Consumption: 2.5 W typical; 4.4 W max
• Compass-safe distance: 5.9" (150 mm)
• Garmin BlueNet network ports: 1

gWind™ Wired Wind Sensor

• Eliminate Wires Through Your Mast
• An easy-to-install solution that eliminates running wires through masts up to 50 feet
• 3-bladed propeller for more accurate wind speed in lighter wind conditions
• Twin-fin design gives a more stable wind angle
• Solar panel mounted on the transducer arm
• Internal solar-charged battery lasts 3 years and is easily replaced

The gWind Wireless 2 transducer offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. It sends accurate wind signals via an ANT® connection directly to a GNX™ Wind instrument or compatible Garmin GPSMAP® 8400/8600 series or GPSMAP 7400/7600 series chartplotters. The transducer features renowned Nexus® twin-fin technology with a 3-bladed propeller, providing more accurate wind speed and more stable wind angle in lighter wind conditions. Also available in wind and sail packs (sold separately) that can be used as stand-alone wind systems or expanded to full network systems via NMEA 2000®.

Specifications:

• Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
• Weight: 350 g
• Waterproof: Yes (IPX6¹)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
• Power Usage: Battery (rechargeable through the solar panel)
• Accuracy Angle: Better than ±1.5°
• Speed: Better than ±3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• Wireless Connectivity: Yes

GDT™ 43 Depth & Temperature Transducer

This thru-hull transducer can read water depth and water temperature. It can retrofit an existing Nexus and Silva 43 mm thru-hull transducer (TH43). When bundled with the NMEA 2000® adapter, the GDT 43 can connect directly to the NMEA 2000 network, and the information can be displayed on a compatible Garmin chartplotter or instrument display. This transducer has a 0-20 degree deadrise.

Garmin GST™ 43 Thru-Hull Speed/Temperature Transducer

The GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).

Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.

In The Box:

• 2 GMI™ 40 marine instruments (two if that version is selected)
• gWind™ Wireless 2 wind sensor
• GDT™ 43 mm thru-hull depth and temperature transducer
• GST™ 43 mm thru-hull speed and temperature transducer
• For the NMEA 2000® network:  2 m backbone/drop cable (3x), 5 T-connectors, power cable, and terminators
• Mounting hardware
• Documentation
