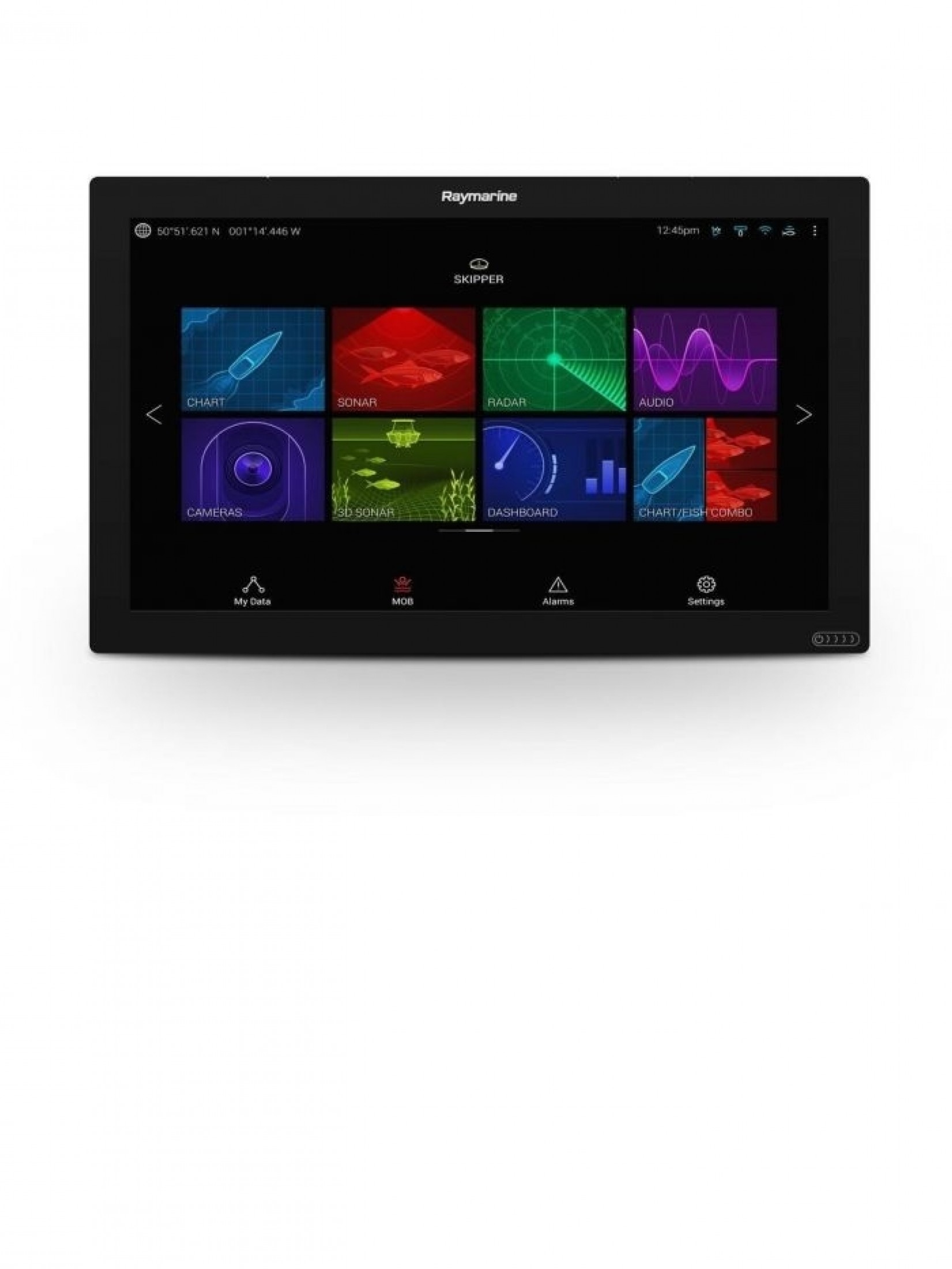

Raymarine Axiom2 XL 24 MFD

Raymarine Axiom2 XL 24 MFD

Model: E70664

Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay
Turn Night Into Day: FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D Fishfinder
Smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers
Intiuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines
Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App
Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, Fishfinder modules, marine radar, autopilot, thermal, and video cameras

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

Specifications

Dimensions (H x W x D)	15.23" x 22.77" x 6.98" (386.84 x 578.40 x 177.39 mm)
USB connection	USB-A Touch input, USB-B Touch output
Accessory connection	USB Micro B
GPS antenna connection	TNC type connector
NMEA 0183 connection	Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate
Ethernet connection	PoE RayNet (10/100/1,000 Mbits/s) x 3
HDMI connections	HDMI in, HDMI out
NMEA 2000 connection	DeviceNet connector
Analog video connections	Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
Wireless connections	Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
External alarm connection	Bare-ended wires x 2
Internal storage	64 GB Solid State
Display Type	IPS (In-Plane Switching)
Color depth	24-bit
PoE operating voltage range	9.5V DC to 32V DC
Current	9.5 A
Operating voltage range	8V DC to 32V DC
Fuse rating	15 A
Nominal supply voltage	12V DC/24V DC

What's in the Box:

MFD (Chartplotter)
Mounting gasket tape
Rear mounting bars x 2
Mounting bar fixings (M5x20 pozi countersunk) x 4
Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
Documentation
DeviceNet to SeaTalkng adaptor cable 1m (3.28')
RayNet (Female) to RayNet (Female) network cable 2 m (6.56')
Power/Video/Audio cable 1.5 m (4.92') right-angled

SKU: #567891775759810
Weight: 27.00 lbs
Brand: Raymarine

Model: E70664
Shipping Dimensions: 0.00" x 0.00" x 0.00"
