JL Audio MVi Marine Amplifier Monoblock Sub-woofer Amplifier 1000 Watts 12v
98645
Model: MV1000/1
Monoblock Class D Marine Subwoofer Amplifier, 1000 W x 1 @ 2 ohms / 600 W x 1 @ 4 ohms - 14.4V
MV monoblock subwoofer amplifiers are engineered to deliver outstanding bass performance and fidelity, with exceptional efficiency in marine applications.
All MV monoblock amplifiers are specifically designed to receive their input signals from the pre-outs of a full-range MVi amplifier, from which they will also receive all signal processing. For this reason, MV monoblock amplifiers have no onboard signal processing, other than a basic input sensitivity setting.
Instead of traditional control knobs and switches, MV amplifiers are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN(R) Software application installed.

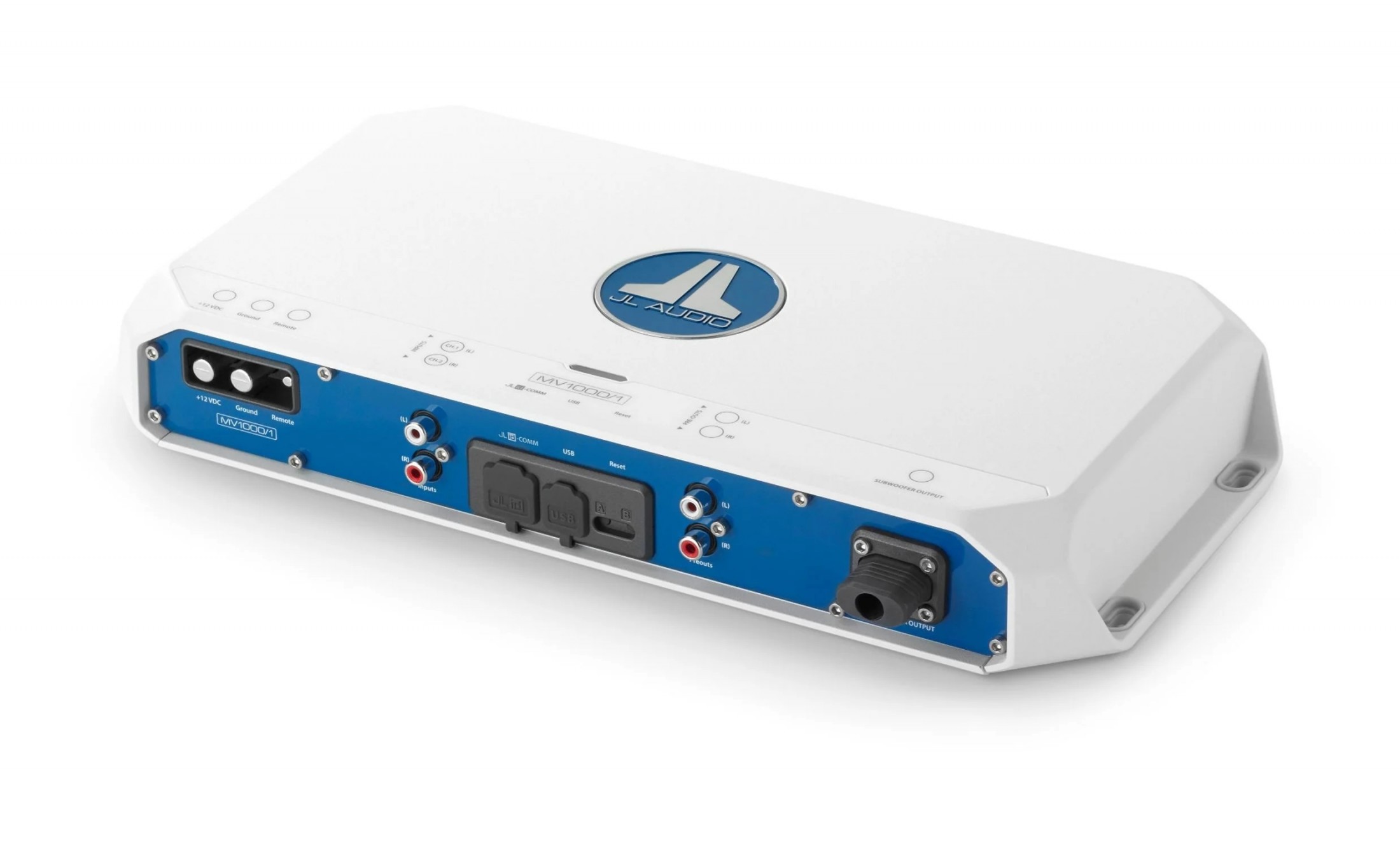

Equipped with an exclusive, low-frequency variant of our NexD2TM switching amplifier technology, the MV1000/1 monoblock subwoofer amplifier generates up to 600 watts into 4 ohms, or a stunning 1000 watts into 2 ohms. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV1000/1 is outfitted with corrosion-resistant hardware and connectors.
Specifications@ 4 ohms| 600 W RMS x 1 | | @ 3 ohms | 800 W RMS x 1 |
| @ 2 ohms | 1000 W RMS x 1 |
| @ 1.5 ohms | N/A |
| Rated Continuous (RMS) Power @ 12.5 V |
| @ 4 ohms | 500 W RMS x 1 |
| @ 3 ohms | 650 W RMS x 1 |
| @ 2 ohms | 800 W RMS x 1 |
| @ 1.5 ohms | N/A |
| General Specifications |
| Frequency Response | 12 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs) | 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) | 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >400 / 50 Hz |
| Damping Factor @ 2 ohms | >300 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 250 mV - 8 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuseTM) |
| IP Rating | IPX2 (when mounted vertically with connections pointed downward) |
| Physical Specifications |
| Height | 2.05 in / 52 mm |
| Width | 13.96 in / 355 mm |
| Depth | 6.93 in / 176 mm |
| Net Weight | 5.6 lb / 2.54 kg |
What's in the Box:- MV1000/1 Amplifier
- Power Connector (for 2 AWG wire)
- Subwoofer Output Harness
- 6 ft A/B USB Cable
