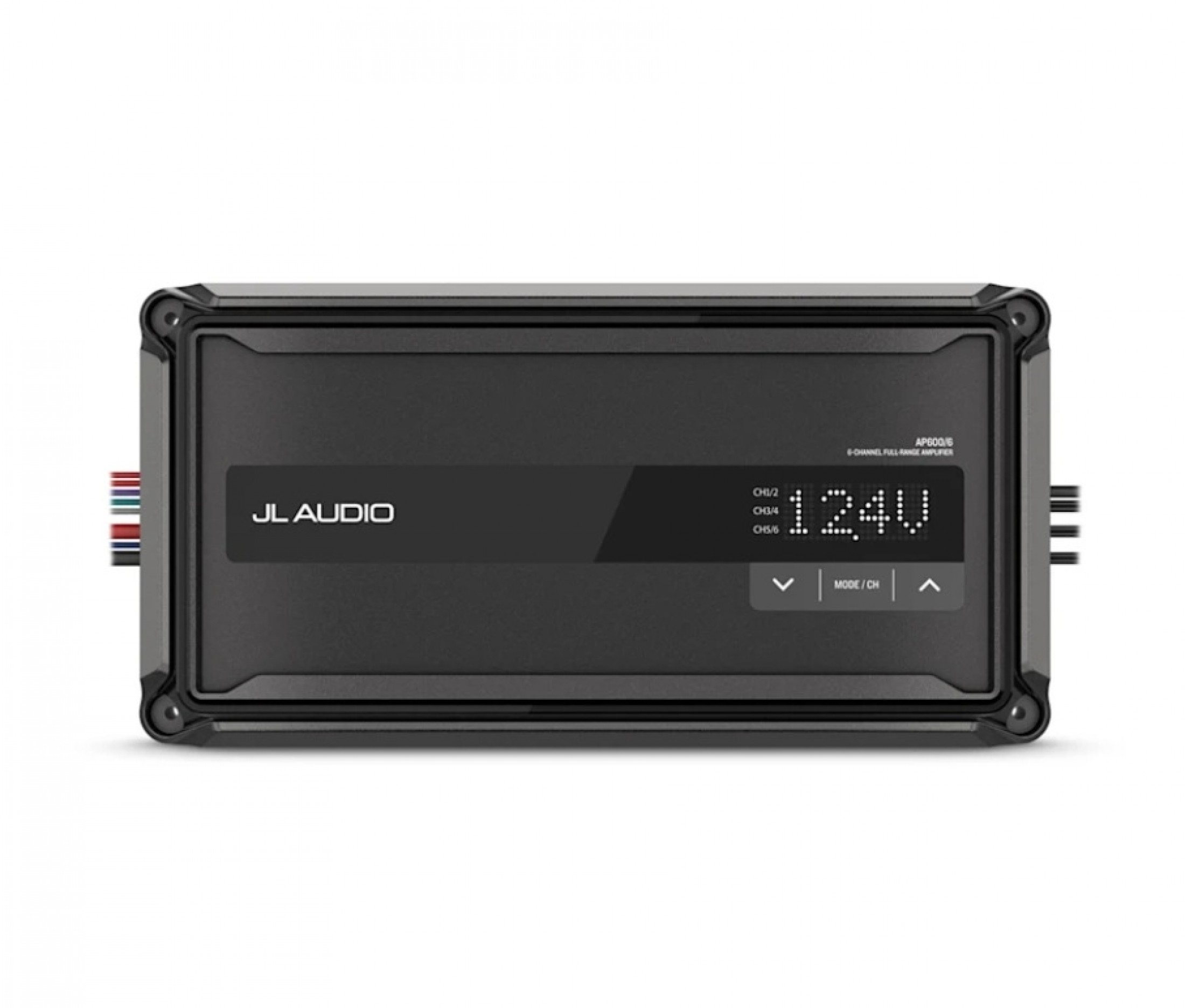

JL Audio AP600/6 Amplifier 600 Watt 6 Channel

JL Audio AP600/6 Amplifier 600 Watt 6 Channel

Model: 010-03430-00

600-WATT 6 CHANNEL AMPLIFIER: This staggered-power 6 channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.
EASY TUNE FEATURE: For additional optimization, pair with a Fusion(R) stereo with built-in DSP, and download the Fusion(R) Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.
CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
RUGGED DESIGN: These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

Specifications
Channels

6
Physical dimensions (Height)	1.86in (47 mm)
Physical dimensions (Width)	11.81in (300 mm)
Physical dimensions (Depth)	5.90in (150 mm)
Operating voltage	9-16 VDC
Water and dust rating	IP67
Operating temperature range	4 deg to 149 deg F (-20 deg to 65 deg C)
Warranty	3 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD)	Channels 1-4: 50 W x 4/150 W x 2 (Bridged); Channels 5-6: 100 W x 2/300 x 1 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD)	Channels 1-4: 75 W x 4; Channels 5-6: 150 W x 2
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Greater than 70 dB
Frequency response (+0, -1dB)	20 Hz-20 kHz
Input sensitivity @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Current consumption (Standby)	Less than 1mA
Current consumption (Idle)	1000mA-1500mA
Fuse rating	70A
Recommended fuse type(s)	AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Input under/over voltage Over temperature Output short circuit

What's in the Box:

JL Audio AP amplifier
Four mounting screws
Documentation

SKU: #556841775760019
Weight: 6.20 lbs
Brand: JL Audio

Model: 010-03430-00
Shipping Dimensions: 0.00" x 0.00" x 0.00"
