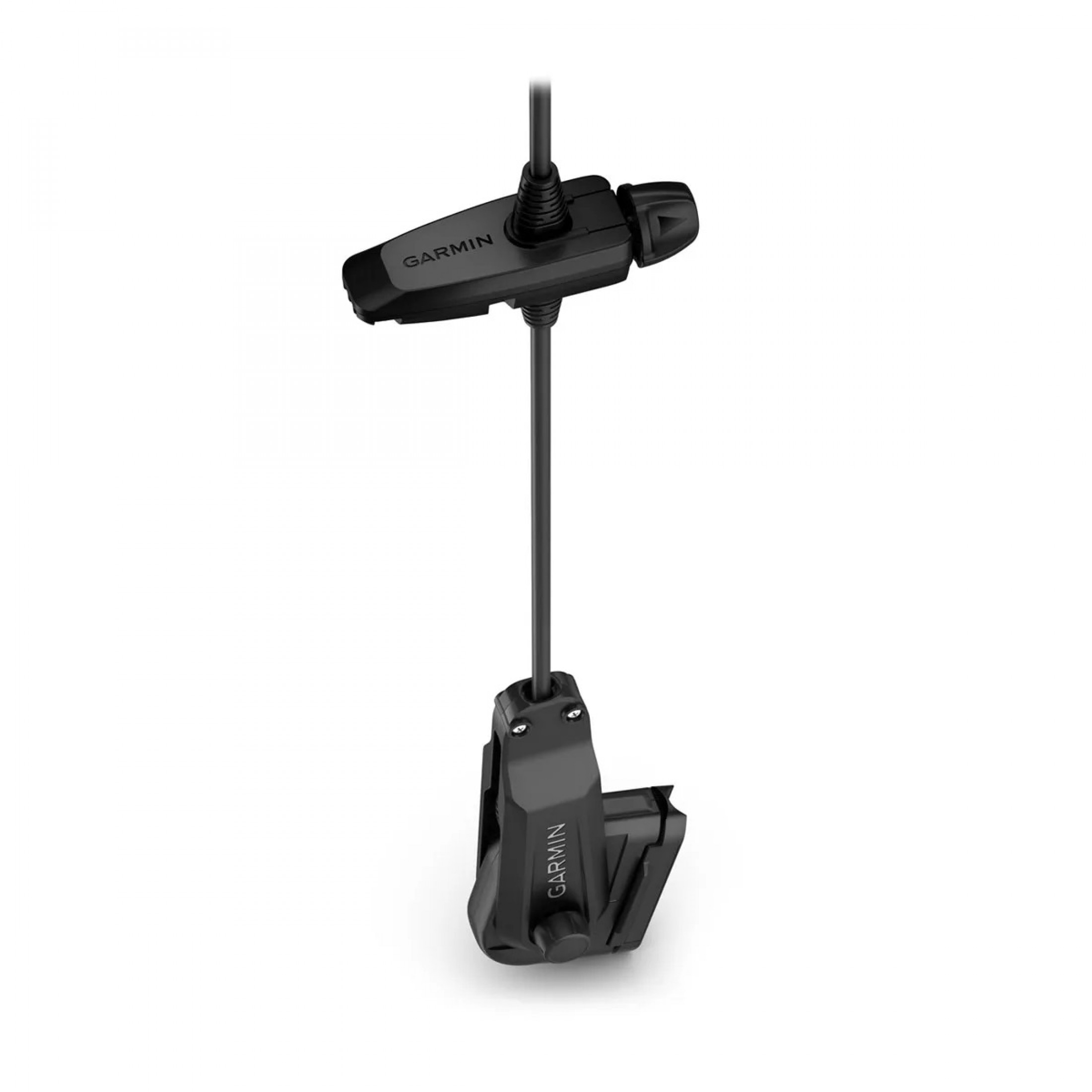

Garmin Panoptix PS22-IF Portable Live Sonar

$1,209.99 (Available - Call for Info 877-999-3699)
Garmin
Reviews (0)

Garmin Panoptix PS22-IF Portable Live Sonar

$1,209.99 (Available - Call for Info 877-999-3699)

Garmin PanoptixTM PS22-IF Portable Live Sonar

Model: 010-01945-10

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable... Read More...

SKU: #554121775759866 | Model: #010-01945-10

Share:

Description Returns

Garmin PanoptixTM PS22-IF Portable Live Sonar

Model: 010-01945-10

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.

Specifications
Transducer beamwidth
With lens: 12 deg x 120 deg
Without lens: 57 deg x 120 deg
Transducer cable length9.8 feet (3 m)
Dimension9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm)
Weight2.60 lbs (1.18 kg)
Temperature rangeOperating: 0 deg C to 40 deg C
Electrical Features
Power input10-32 V
Fuse4A
Sonar Features
Frequency417 kHz
Transmit power48 W
Maximum depth300 feet
Connections
Garmin Marine Network Ports1 (standard connector)
Sonar Modes
LiveVü DownYes
LiveVü ForwardYes
Traditional sonar sourceYes

What's in the Box:
  • Panoptix PS22-IF transducer
  • Transducer rotator and bracket
  • Removable lens
  • Hardware
  • Documentation

  • SKU: #554121775759866
  • Weight: 5.00 lbs
  • Brand: Garmin
  • Model: 010-01945-10
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
