Digital Yacht ONEFIX GNSS System

• Hi precision GNSS system with accuracies typically better than 1m
• Utilises GPS, Galileo, Beidou and NavIC constellations - with optional Glonass sensor
• L1/L5 dual band receiver and antenna
• Advanced anti spoofing algorithm continuously monitors each constellation and generates alerts if issues detected
• NMEA 0183 and NMEA 2000 outputs
• WiFi interface for iPad and tablet navigation
• Web interface for setup and satellite analytics
• Integrated data logger with export of points by GPX/KML
• NMEA 2000 wind, depth, speed, AIS and compass data multiplexed to wireless output for use with apps
• Optional MOB switch input to generate synthetic AIS MOB SART messages on NMEA 2000
• Alarms for errors via NMEA 2000 alerts
• Buzzer/relay output for external alarms
• 1PPS timing output

OneFix is Digital Yacht's newly introduced hi-performance GNSS (global navigation satellite system) sensor. Using multiple satellite networks and new dual band technology, it's been designed to offer super-accurate positioning (typically better than 1m) and importantly has robust anti-spoofing algorithms built in for more reliable navigation. It can also fit to just about any navigation system (including legacy units) plus connect to iPads and tablets and the latest multi-function NMEA 2000 compatible displays. OneFix promises to bring highly accurate, more reliable navigation to any boater.

OneFix incorporates a dual band (L1 and L5) processor and works with GPS, Galileo, NavIC and Beidou to calculate a fix. Glonass (the Russian based system) is available as an option with a 2nd active antenna making for a very advanced system.

OneFix has also been designed to connect to older systems via legacy NMEA 0183 as well as more modern systems with NMEA 2000.

OneFix built-in web interface also incorporates data logging and event marking capabilities so key points of a voyage (or even fishing hotspots) can be logged to internal memory. You can download event markers and track log files in GPX and KML formats for easy overlay on Google Maps and charts.

OneFix can generate industry-standard alerts on the NMEA 2000 bus, enabling "pop-up" notifications on compatible MFDs. When paired with the NavAlarm sounder, it provides an ultra-loud audible alarm to ensure critical warnings are never missed. OneFix generates alerts for position inaccuracy, positioning spoofing or errors, offering enhanced safety and reliability on the water.

OneFix also supports a simple switch input for an MOB, such as Digital Yacht's MOB input panel, and will generate a synthetic AIS MOB message on the NMEA 2000 network. By pressing the button on the Digital Yacht MOB panel, OneFix will generate NMEA 2000 MOB (man overboard) alerts.

OneFix also has an input for alternative positioning systems such as STL from Iridium. These use triangulation from substitute satellite networks to provide an alternative albeit less accurate position fix (approx. 50m) but have the advantage of a more powerful signal and alternative frequency outside of traditional GNSS constellations.

OneFix can accept data from these systems via NMEA 0183 and switch between networks allowing for a flexible multi-input, hub-based solution.

Accessing OneFix web interface is very simple. Simply use any phone, PC, Mac or tablet to logon to the built-in web interface and no internet connection is required.

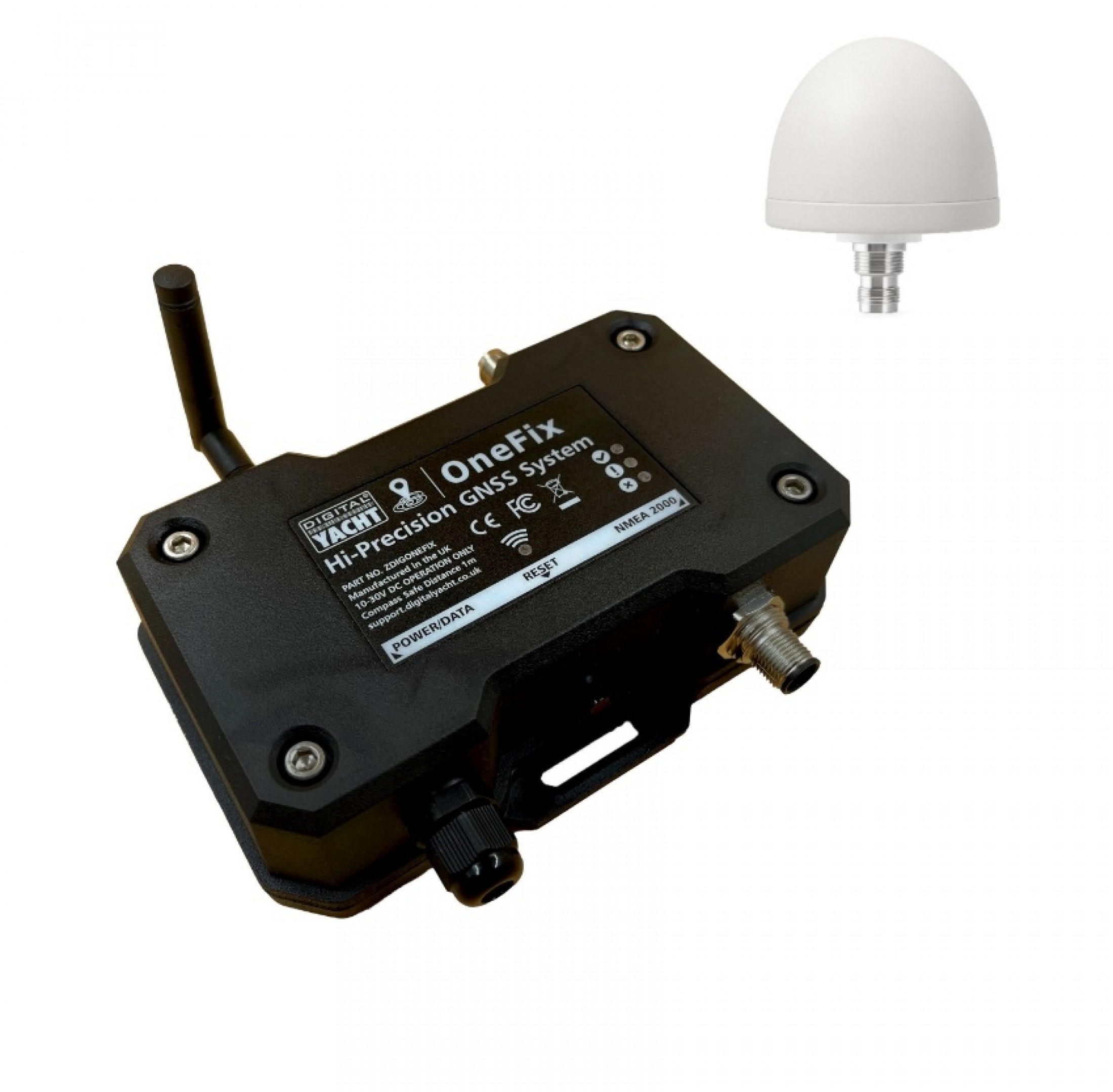

• OneFix Interface
• External GPS and 10m cable
