RAM® No-Drill™ Universal Laptop Mount for Heavy Duty Trucks

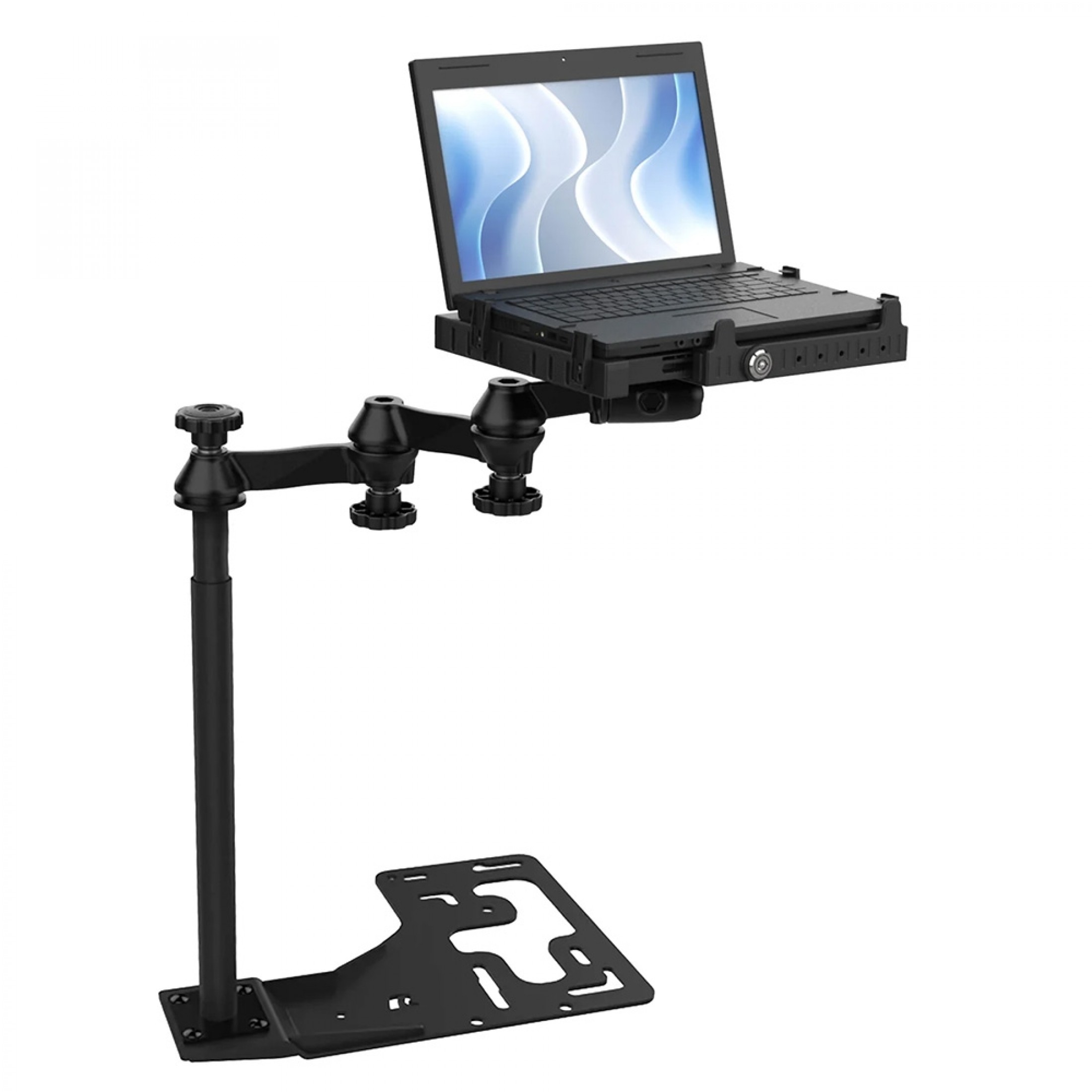

The RAM® No-Drill™ Universal Laptop Mount for Heavy Duty Trucks (RAM-VB-168-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Triple swing arms provide articulation and 18” of reach for passenger and driver access to the mounted device. RAM® rubber ball-and-socket technology provides additional adjustability and shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally).

The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify the full range of vehicle compatibility on the tab above.

Features:

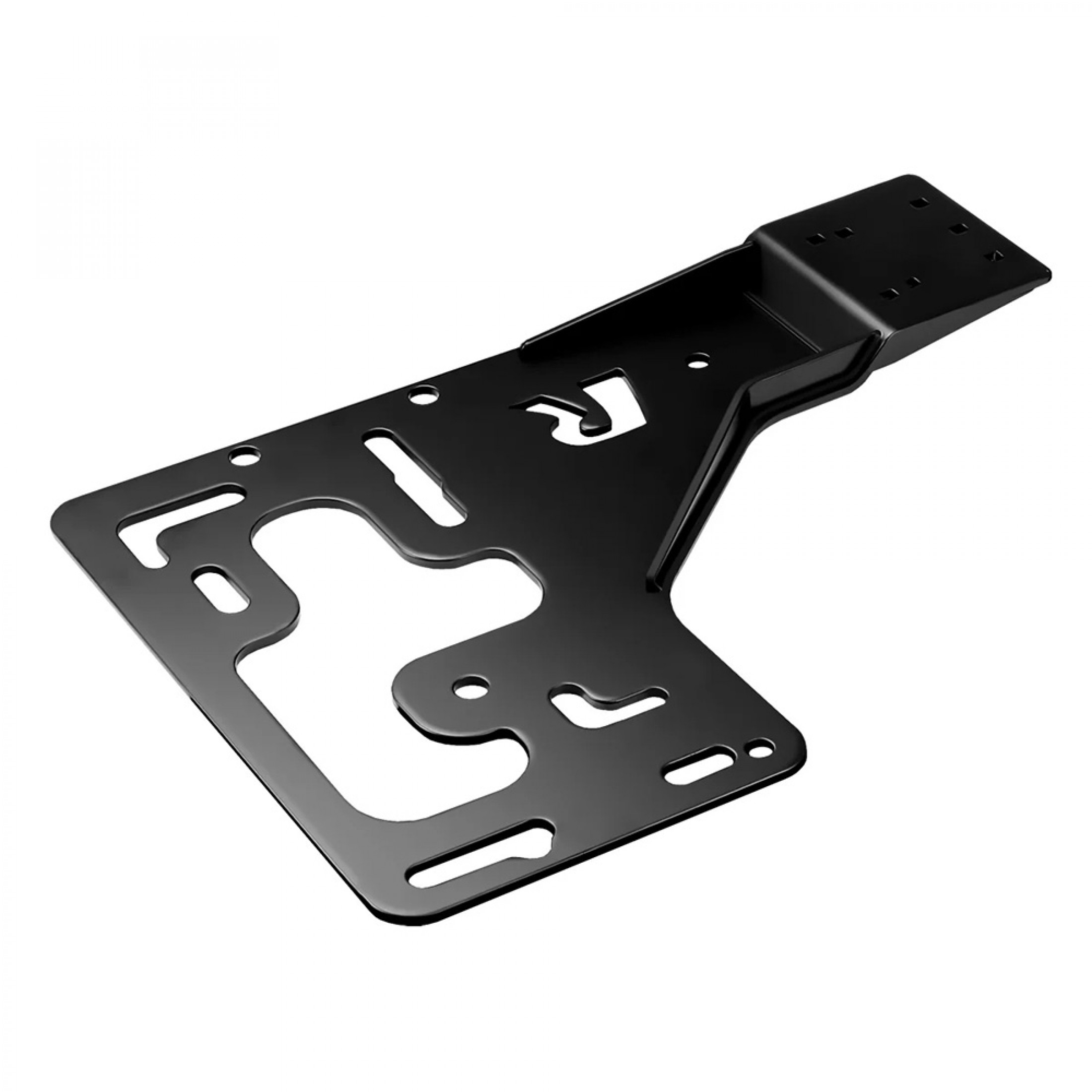

• Custom laptop vehicle mount installs using passenger seat bolts; no drilling required

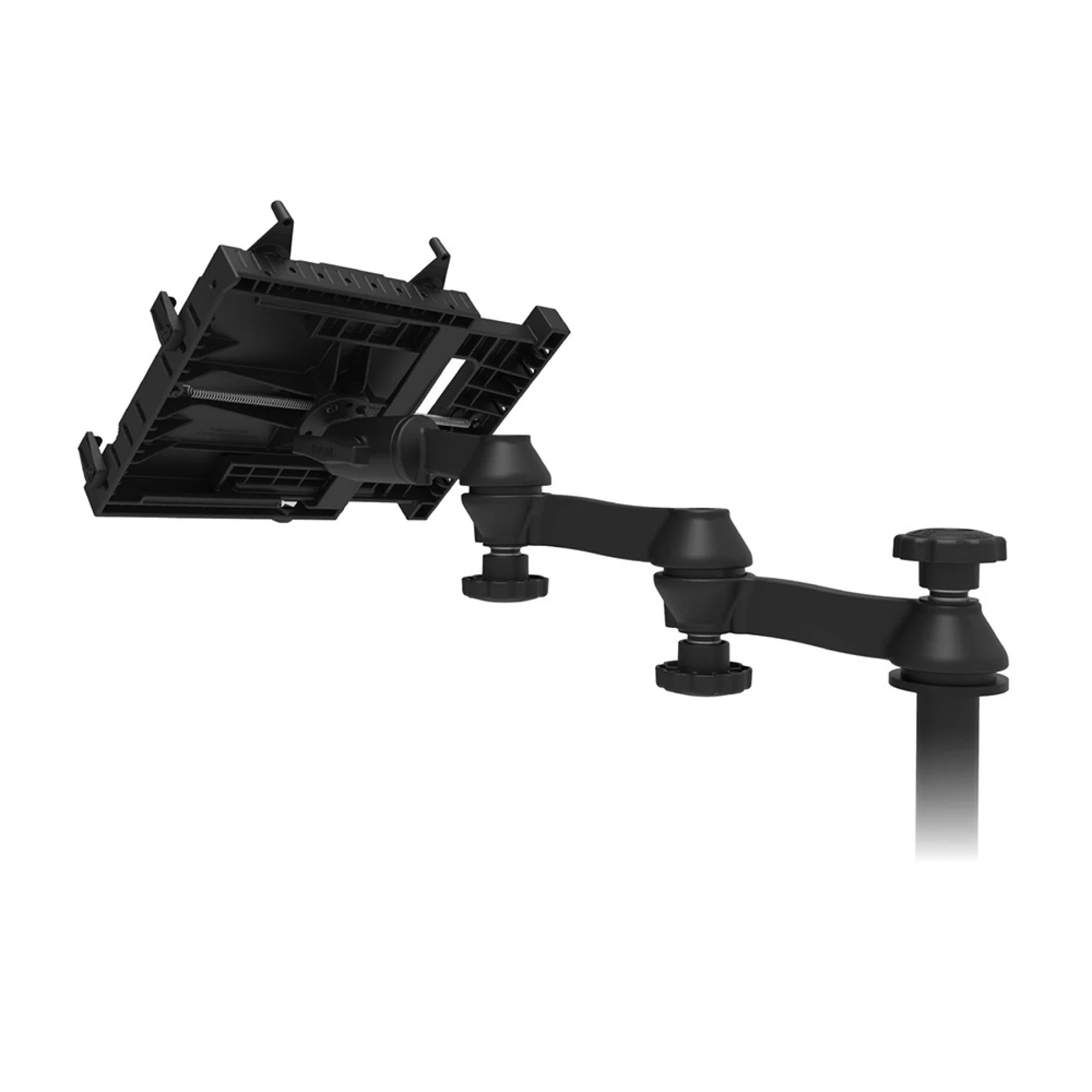

• Triple articulating swing arm provides a high level of adjustability

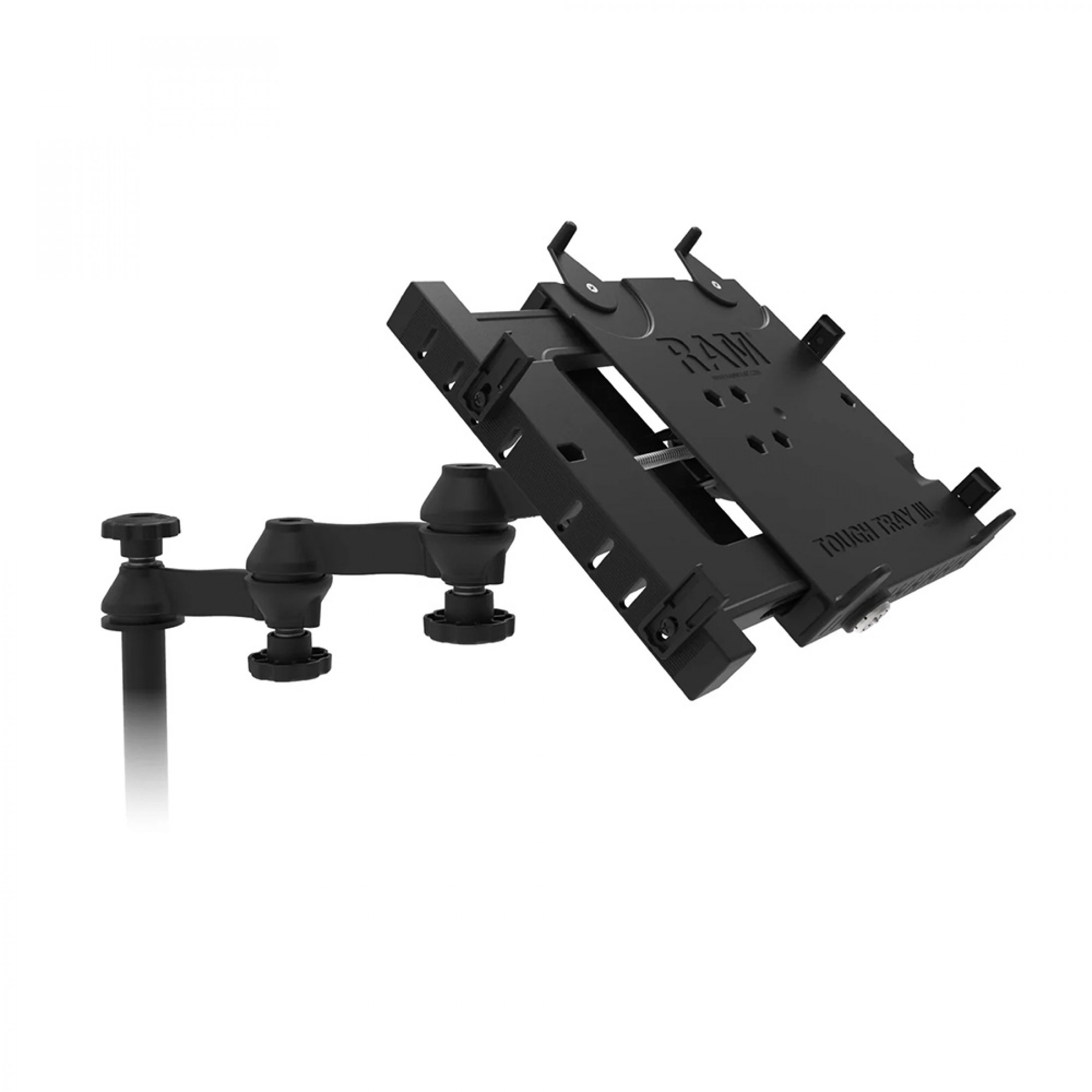

• Universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

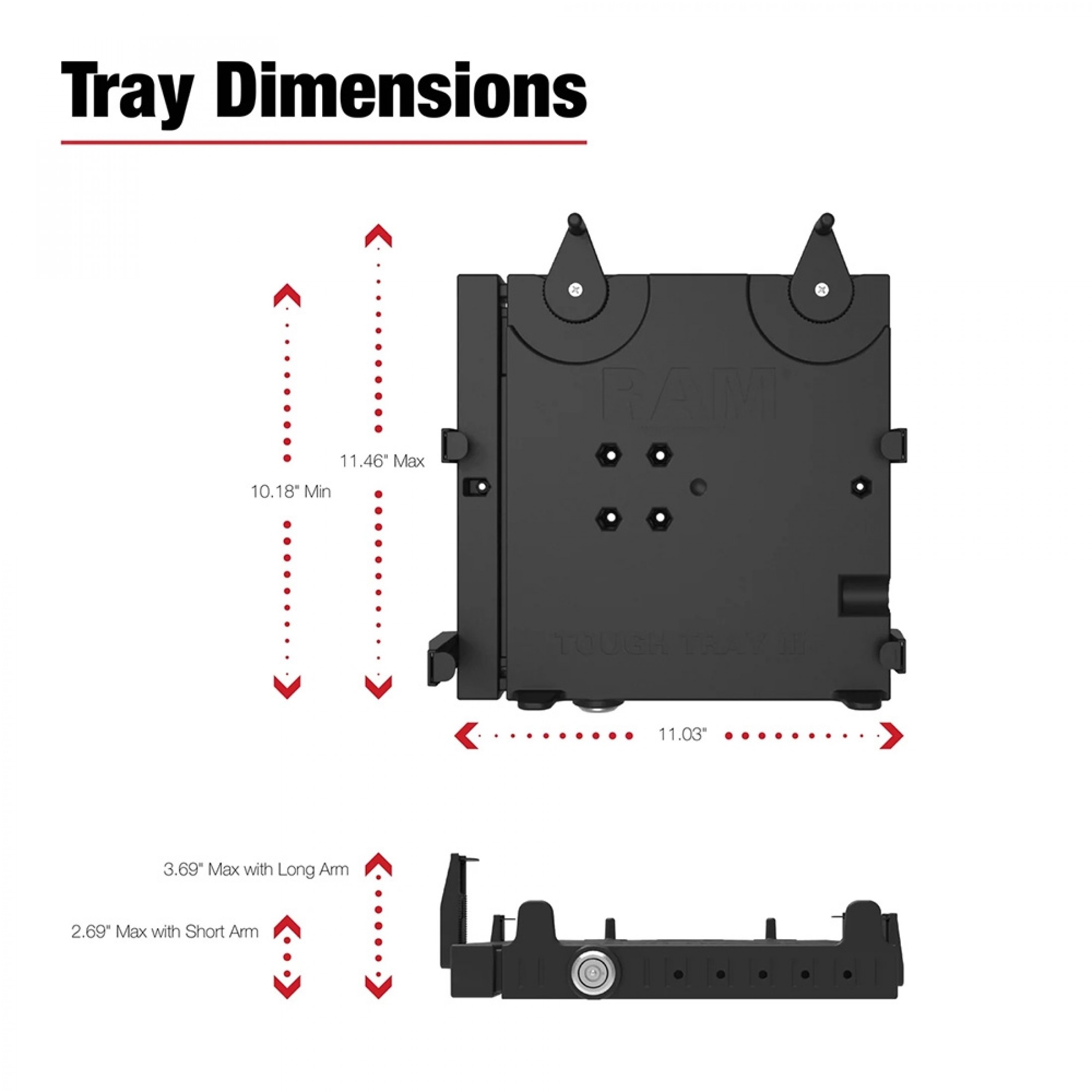

Tray Dimensions:

• Width Range: 10" - 15.25"
• Side Arm Clamp Height: 0" - 1.875"
• Depth Range: 7.625" - 10.625"
• Tray Thickness: 1.26"

Ball Size:

• C Size (1.5")

Additonal Information:

If the heater box is under the seat, the installer may need to drill holes in the base to accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May not work with swivel style seats for big rigs.
