Actisense NMEA2000 Mid Bulk Cable Reel - 100M

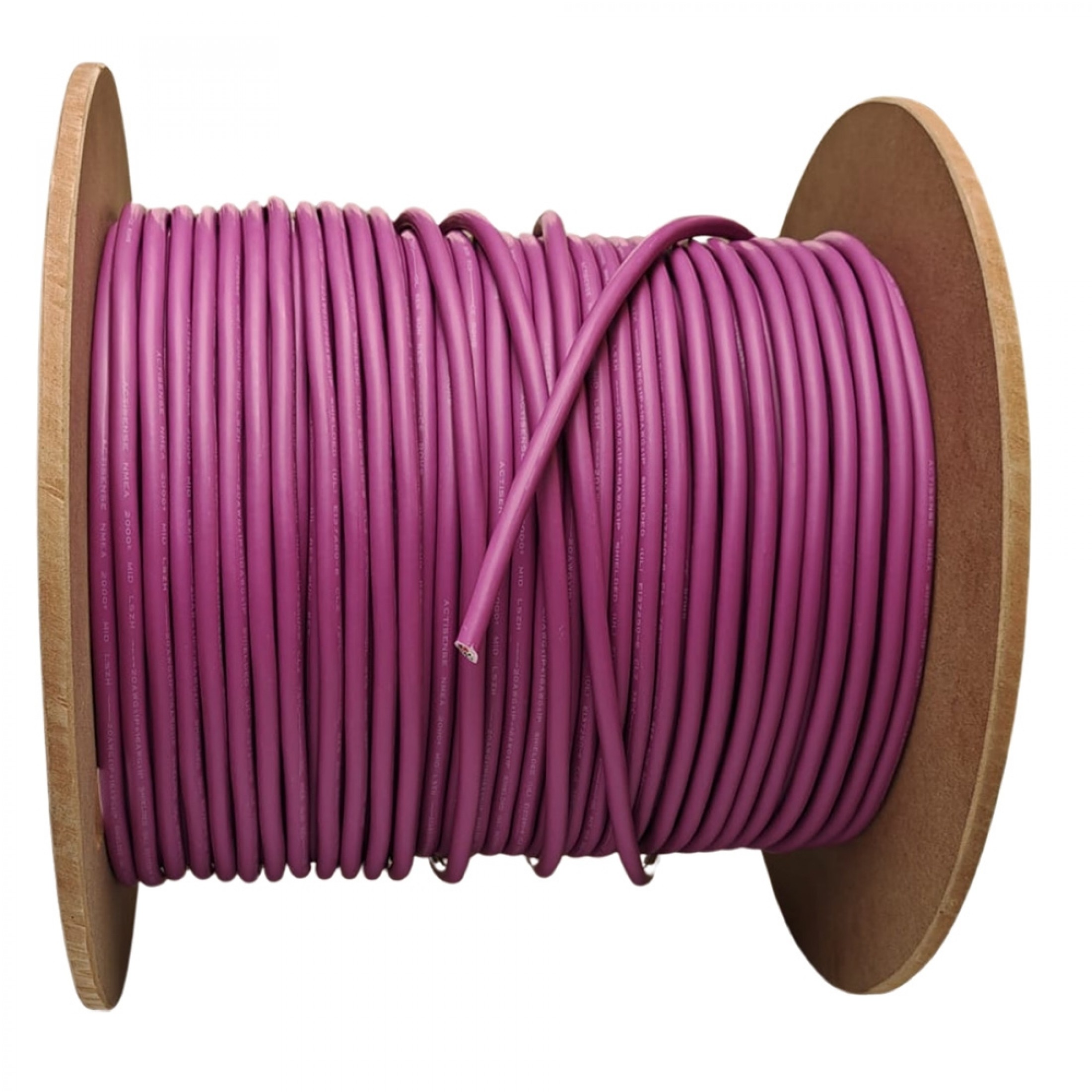

NMEA2000 Mid Bulk Cable Reel - 100M

This cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.

The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.

The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.

The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.

Technical Specifications:

Cable

Rated Voltage - 60V DC
Rated Current - 8A
Braid Material - 37 AWG tinned copper
Braid Coverage - 65% Nom.
Jacket Material - LSZH Purple (RAL4008)
Jacket Outer Diameter - 8.2mm
Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M)
Reel Length - 100m
Reel Weight - 13-14kg

Power Pair

Conductor - 16 AWG (19-strand tinned copper)
Insulation - 0.17 mm Nom. LSZH
Diameter - 1.85mm Nom.
Colors - Red & Black
Shield - AL Mylar tape over pair
DC Resistance - 4.26Ω / 1000ft (14mΩ/M)

Data Pair

Conductor - 20 AWG (19-strand tinned copper)
Insulation - 0.79 mm Nom. Foam PE
Diameter - 2.49mm Nom
Colors - Blue & White
Shield - AL Mylar tape over pair
Impedance - 120Ω ±10% @ 1MHz
DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M)
Attenuation @ 125 kHz - 0.29dB / 100ft
Attenuation @ 500 kHz - 0.50dB / 100ft
Attenuation @ 1 MHz - 0.70dB / 100ft

Drain

Conductor - 20 AWG (19-strand tinned copper)
DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M)

Approvals and Certifications

Operating Temperature - -20°C to +70°C
Storage Temperature - -40°C to +85°C
NMEA 2000 Approved
RoHS Compliant
UL Certified (E137250), (UL13)
LSZH to IEC 60754-1/2 & IEC 61034-1/2

SKU: #532481764644804
Weight: 0.00 lbs
Brand: Actisense

Model: A2K-BULK-100MID
Shipping Dimensions: 0.00" x 0.00" x 0.00"
