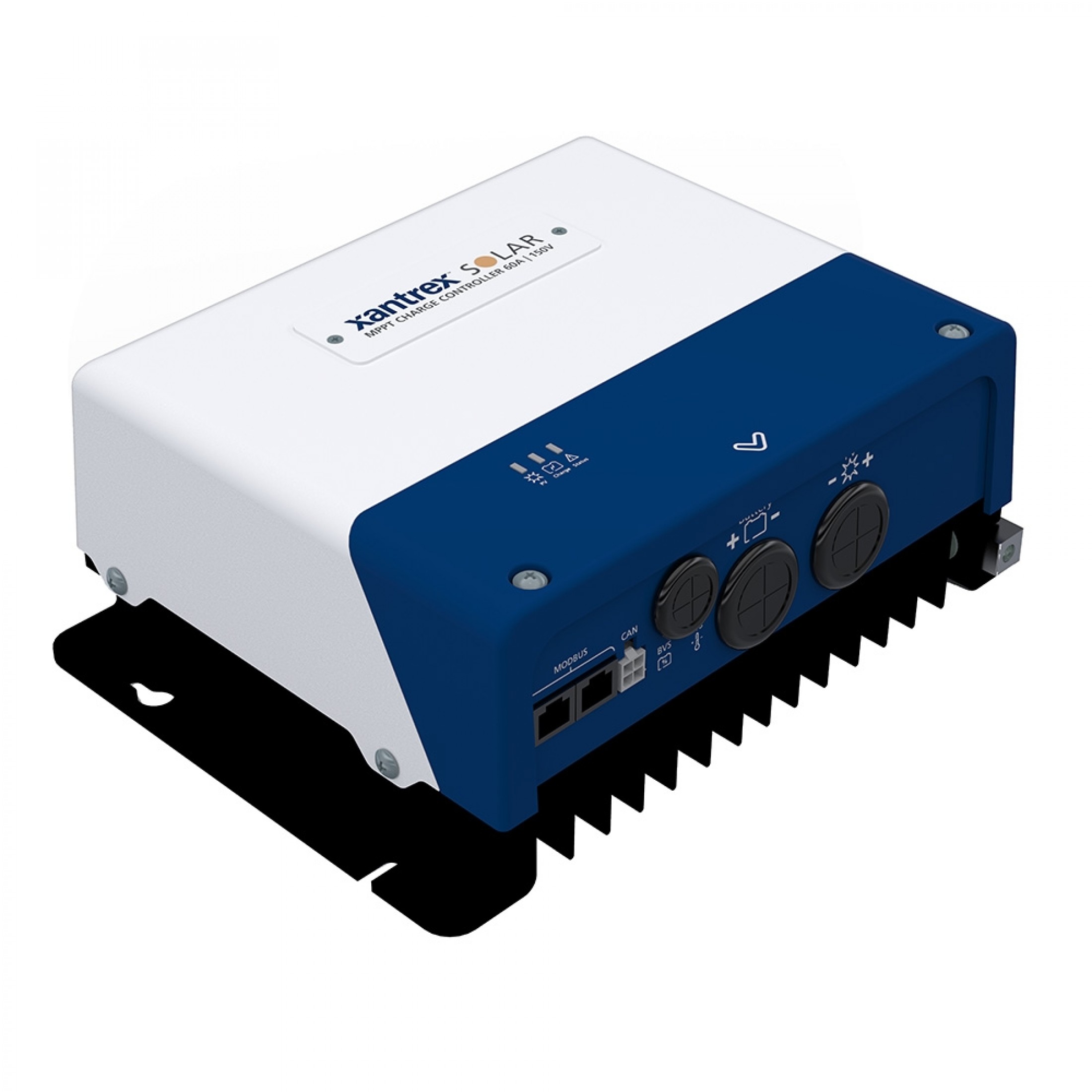

Xantrex 60 AMP MPPT Charge Controller

60 AMP MPPT Charge Controller

Enhanced Energy Optimization & SmartSolar Performance.

The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability.

Features:

Ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating
Xantrex MPPT control algorithm maximizes solar system efficiency and energy harvesting effectiveness
Manages and optimizes power output from a diverse array of solar panels under varying environmental conditions
Regulates power and current flow to protect and prolong battery lifespan
The battery’s status is monitored, and the charging current is adjusted to prevent overcharging when fully charged
Protection against short-circuiting enhances safety, while protection against input overloading enhances
system reliability and longevity
Battery temperature compensation boosts both system performance and charging efficiency
Real-time monitoring provides data on energy usage and solar power system efficiency
Dynamic power reduction prevents overheating and improves battery performance and safety

Specifications:

LED indicators display PV charging, charger stage, and event status
Remote panel for monitoring and setting (requires the Solar MPPT Remote Panel)
30% Higher than the PWM load
RV short-circuit protection, charge over-current protection
RV-C, Modbus, and Bluetooth built-in
12/24/36/48V System Voltage
MPPT tracking efficiently is up to 99.5%
Lead-acid, AGM (Sealed), Gel, Flooded, Lithium batteries and custom
Current-limiting charging mode
Xantrex App for ultimate control
Compliance: UL1741CSA C22.2#107.1

SKU: #495671728097623
Weight: 0.00 lbs
Brand: Xantrex

Model: 710-6048-01
Shipping Dimensions: 0.00" x 0.00" x 0.00"
