Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Discontinued - There may be a replacement item available, please call us 877-999-3699

SALE!

Wichard Marine

Reviews (0)

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Discontinued - There may be a replacement item available, please call us 877-999-3699

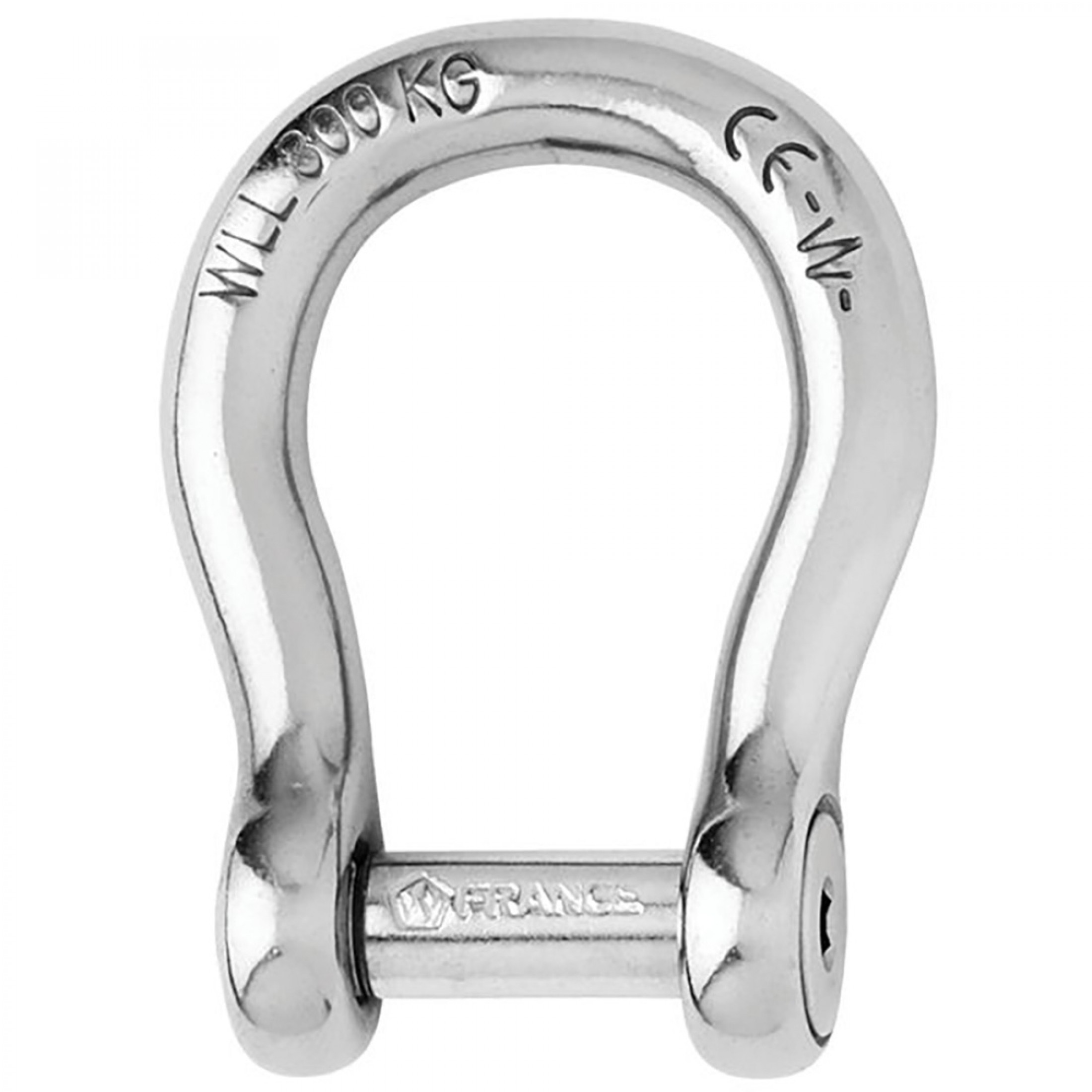

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Features:

Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does... Read More...

SKU: #436341670918622 | Model: #01344

Description Returns

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"

Features:

Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications:

Ideal for linking chains and anchor
On the halyard, avoids damaging the sails
To be used when the clutter is reduced
To be used when ample room is required

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 2110 / (kg) 960
WLL: (lb) 1190 / (kg) 540
Breaking load: (lb) 5950 / (kg) 2700
Weight: (lb) 0.148 / (g) 67

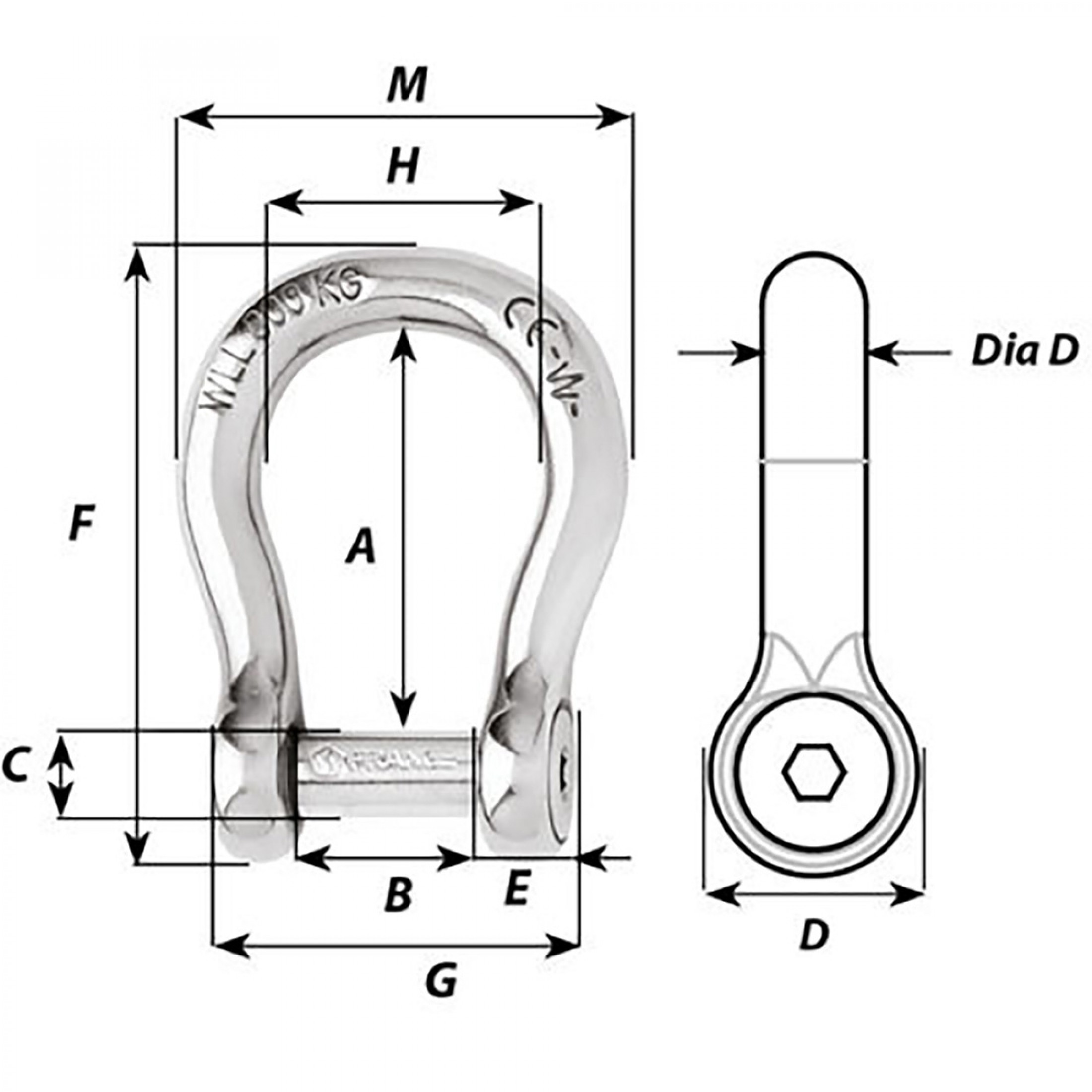

Dimensions:

A: (inch) 1 29/64" / (mm) 37
B: (inch) 5/8" / (mm) 16
C: (inch) 5/16" / (mm) 8
D: (inch) 5/8" / (mm) 16
D diameter: (inch) 5/16" / (mm) 8
E: (inch) 9/32" / (mm) 7
F: (inch) 63/64" / (mm) 25
M: (inch) 1 37/64" / (mm) 40

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

*Sold as an Individual

SKU: #436341670918622
Weight: 0.00 lbs
Brand: Wichard Marine

Model: 01344
Shipping Dimensions: 0.00" x 0.00" x 0.00"
