Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Discontinued - There may be a replacement item available, please call us 877-999-3699

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

Bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding... Read More...

SKU: #436251670918622 | Model: #01248

Description Returns

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

Bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking
Part # 01248 is not self-locking

Applications:

To be used when ample room is required
Possibility to attach several lines or cables

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 9920 / (kg) 4500
WLL: (lb) 6610 / (kg) 3000
Breaking load: (lb) 33060 / (kg) 15000
Weight: (lb) 2.328 / (kg) 1.056

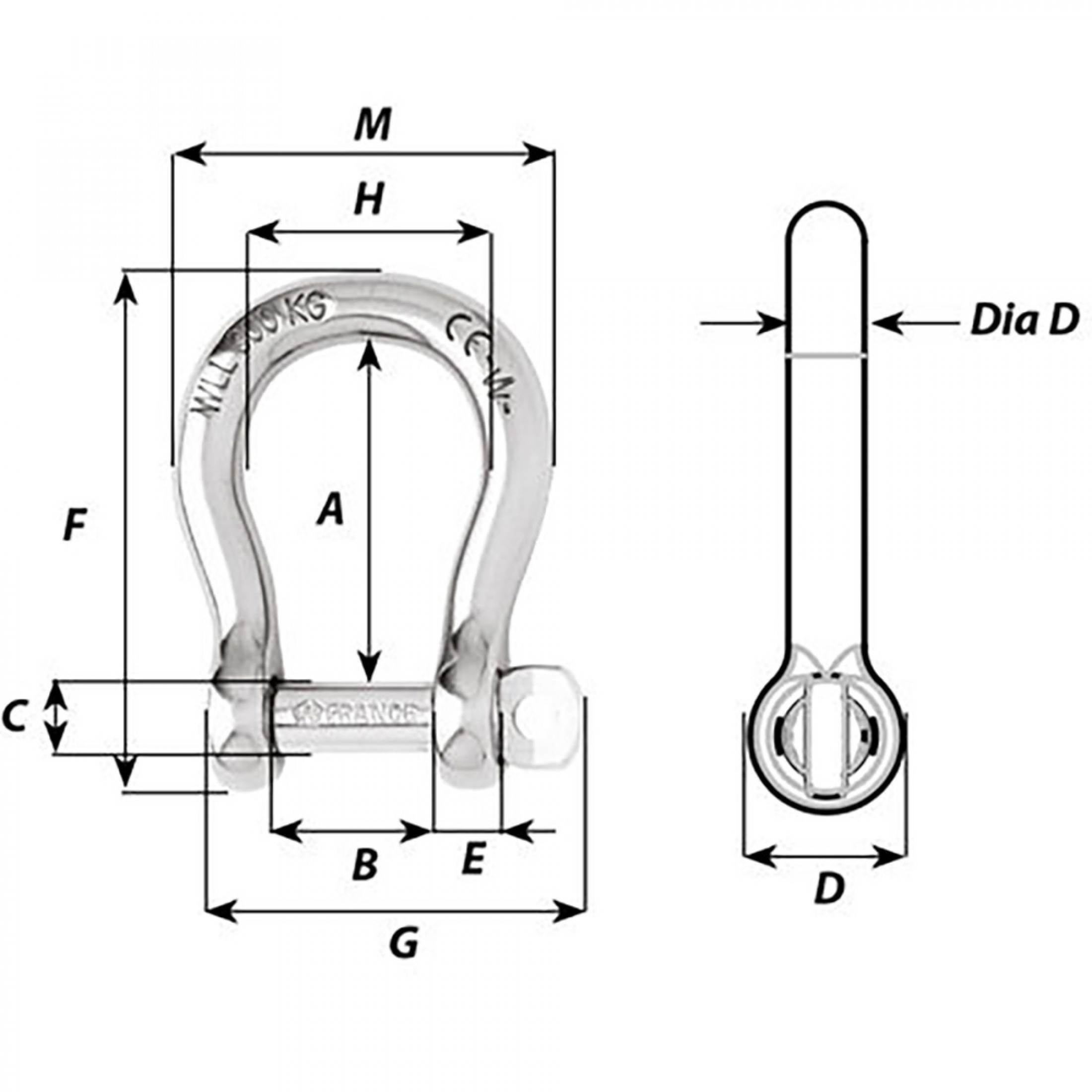

Dimensions:

A: (inch) 3 5/32" / (mm) 80
B: (inch) 1 37/64" / (mm) 40
C: (inch) 25/32" / (mm) 20
D: (inch) 1 37/64" / (mm) 40
D diameter: (inch) 25/32" / (mm) 20
E: (inch) 45/64" / (mm) 18
M: (inch) 3 15/16" / (mm) 100

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

*Sold as an Individual

SKU: #436251670918622
Weight: 0.00 lbs
Brand: Wichard Marine

Model: 01248
Shipping Dimensions: 0.00" x 0.00" x 0.00"
