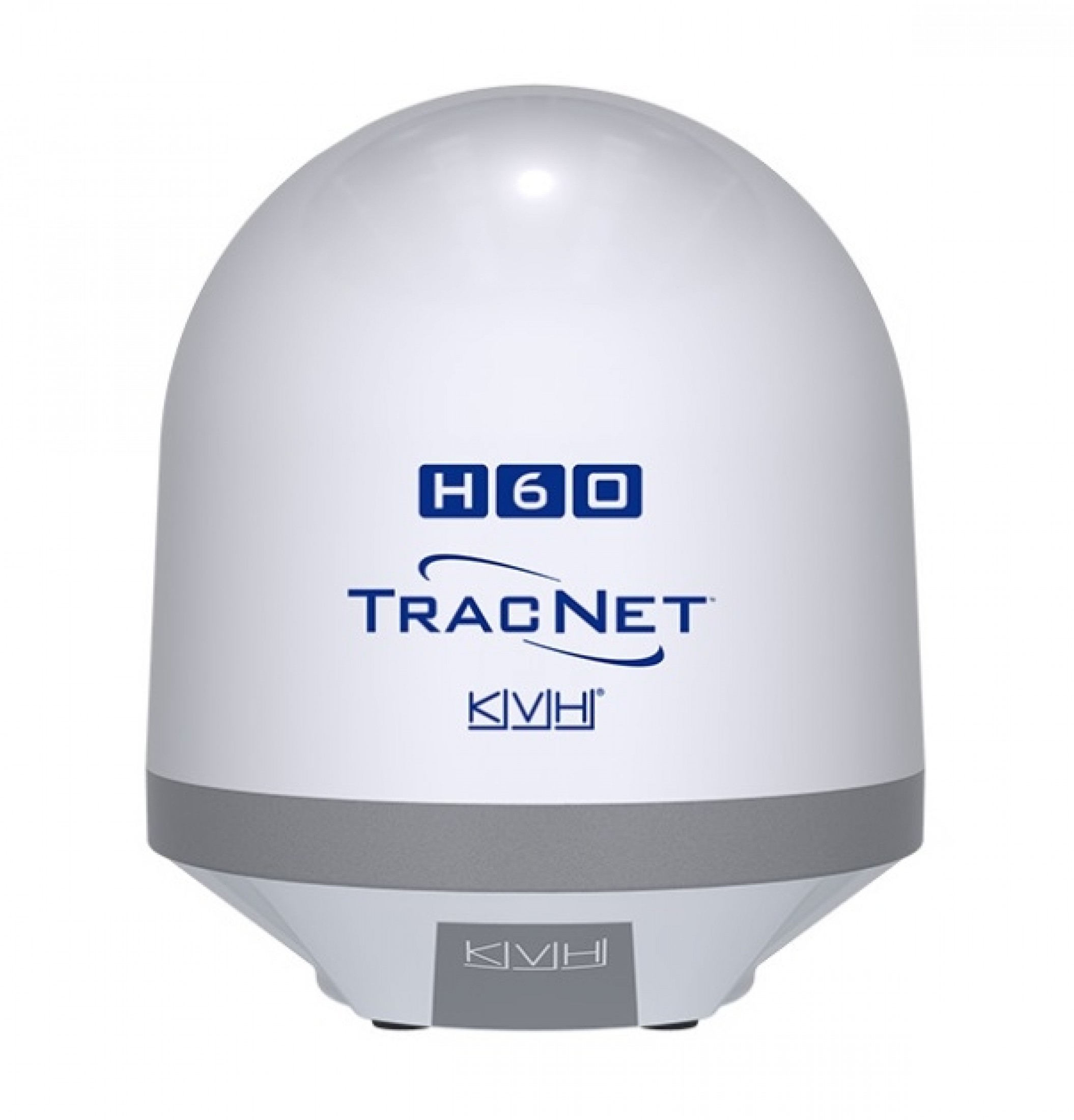

KVH H60 60 cm Compact Hybrid Terminal with Satellite, Cellular, and Wi-Fi.
Model: 01-0436-11
- Rugged, commercial-grade system, diameter 60 cm (24.0 in), weight 24.3 kg (53.6 lbs)
- Satellite, cellular, and Wi-Fi capabilities in one integrated design
- Automatically switches to the best connectivity option based on cost, data quality, and more
- Data speeds as fast as 10/3 Mbps (down/up)
- For boats 60+ feet (18+ meters)
- Supports use of user-supplied SIM cards
- High-performance tracking using digital IMUs and a commercial-grade rotary joint
- Precision 3-axis stabilized pedestal design plus stabilized skew
- Single cable install
- Mobile-responsive KVH Manager for analytics and data control
- Exclusive IoT proactive monitoring that reports daily on 150+ performance and health parameters
Enjoy the fastest, most reliable connectivity at sea and in port with the KVH ONE™ hybrid network and groundbreaking TracNet™ terminals. Each system includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication option at all times, in all sea states, and at any speed. It’s like having three antennas in one! Captains can share proprietary files with the office on shore. Crew members can enjoy entertainment, news, sports, and social media, plus enjoy crystal-clear voice calls with family. Don’t think about how to connect, just feel confident that captains and crew can connect to whatever they need at any time.
The TracNet™ H60 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking TracNet H60 is 42% lighter than leading competitors and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.
Specifications| Automatic hybrid Switching | yes |
| Connectivity options | VSAT, Cellular, Wi.fi |
| Antenna diameter/weight | 23.6" 53.6lbs |
| BDU (Below Deck Unit) | tracnet Hub (AC) |
| Max VSAT Speeds Mbps2 (Down/Up) | 10/3 Mbps, or 25/3 with KVH Elite Subscription |
| Satellite Channels | Dual High-speed |
| Stabilixation | Three axis + stabelized skew |
| Supports user-supplied SIM card | Yes |
| easy installation | Single cable install |
| High-performance tracking | Digital IMU's and commercial-grade rotary joint for uniterupted reception |
| KVH Elite Compatible | Yes |
| Cybersecurity | Integrated terminal and network security |
