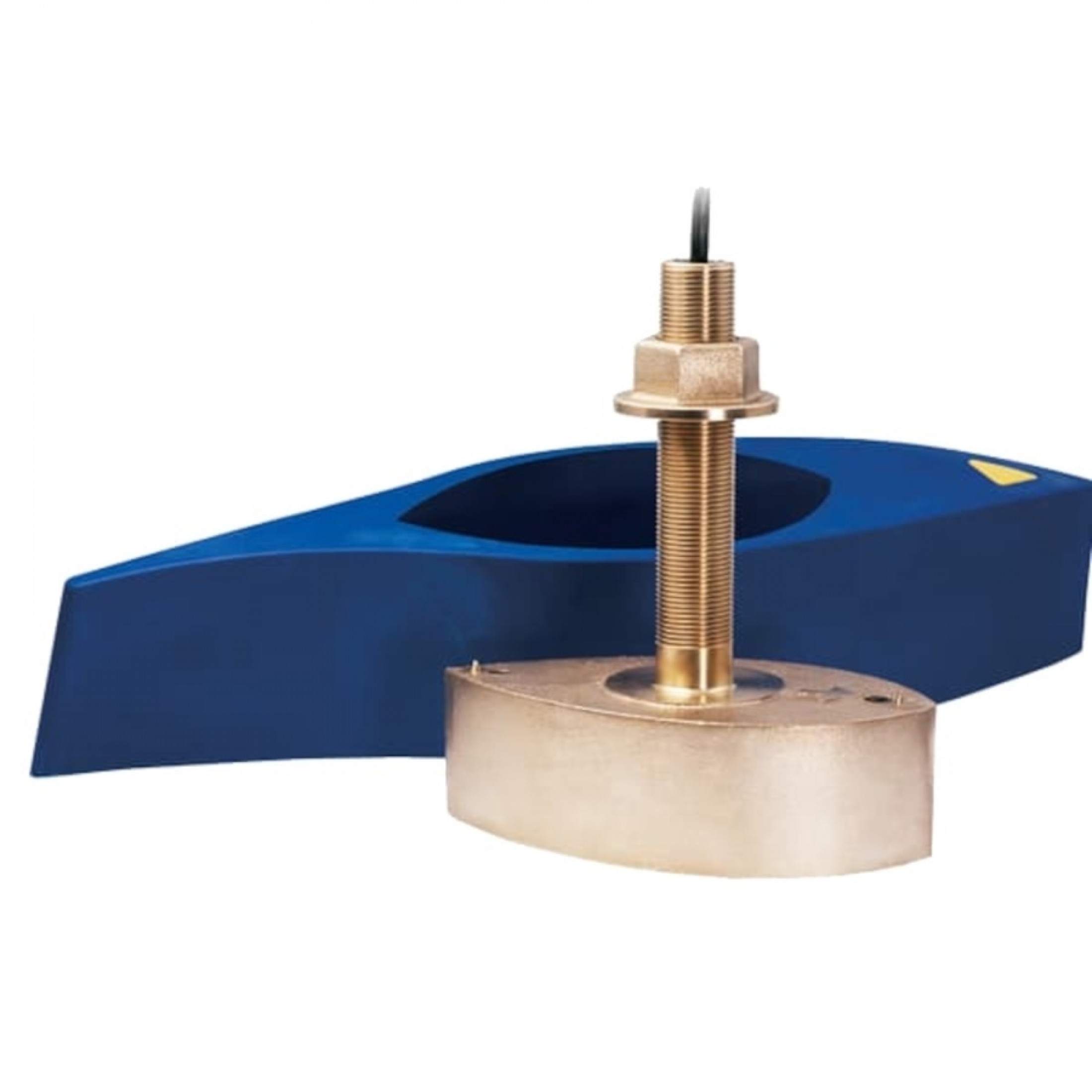

Airmar B265C-LM Bronze TH Low Medium CHIRP Furuno 12-Pin Mix-N-Match

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

Model: B265C-LM-12F

Depth and fast-response water-temperature sensing
1 kW of power for great deep to mid-depth performance
Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')
Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')
73 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
Bronze housing with High-performance Fairing for optimal high-speed performance
Patented Xducer ID® technology
Hull Type: Fiberglass or wood
Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length	10 m (33')
Single or Dual Frequency	CHIRP-Ready Dual-Band
Frequency Band	Low-Medium
Housing Material	Bronze
Low Frequency	42-65 kHz
Low Frequency Beamwidth	25°-16°
Medium Frequency	85-135 kHz
Medium Frequency Beamwidth	16°-11°
Max Deadrise	Up to 20° with fairing
Max Deadrise Angle	20°
Max Depth	Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
Mounting Style	Thru-Hull with Fairing
Power Rating	1 kW
Transducer Functions	Depth, Temperature
Usable Shaft Length	121 mm (4.75")

What's in the Box:

B265C-LM-MM Transducer
High Speed fairing Block
High Speed Fairing Block Bolt Kit
MMC-12F Cable

SKU: #420031659453707
Weight: 23.90 lbs
Brand: Airmar

Model: B265C-LM-12F
Shipping Dimensions: 0.00" x 0.00" x 0.00"
