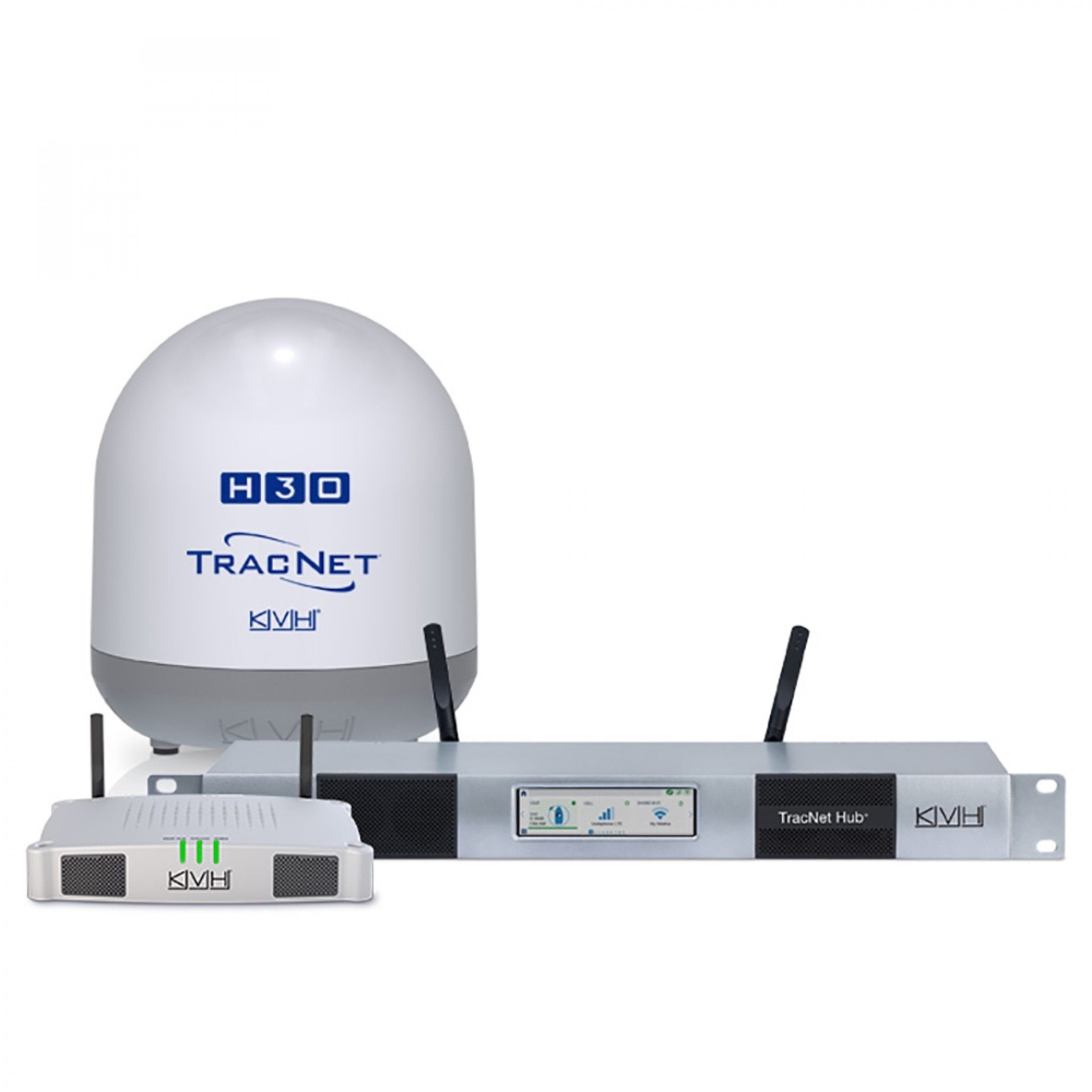

TracNet™ H30 Ku-Band Antenna with TracNet Hub

The TracNet™ H30 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking, ultra-compact TracNet H30 includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.

*Subscription required

KVH ONE Hybrid Network

• Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
• Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
• Compatible with shore-based Wi-Fi networks

Features:

• Automatically switches to the best connectivity option based on cost, data quality, and more
• Hybrid connectivity options (VSAT, Cellular, and WiFi)
• Stabilization - Two-axis, stabilized skew
• Single cable install with DC and AC power BDUs (below deck units)
• Cybersecurity - Integrated terminal and network security; optional enterprise-level upgrade
• Up to 51% lighter than competitive systems
• For boats 30+ feet (9+ meters)
• Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed for excellent reception even in bad weather

Technical Specifications:

• Dome Diameter - 14.5" (36.8cm)
• Dome Weight - 24.6 lbs (11.1 kg)
• Maximum Speed Download/Upload - as fast as 6 Mbps/2 Mbps (down/up)
• Elevation/Azimuth Range - 7.7° to 75°/Unlimited rotation
• Operating Temperature - -22°F to 131°F (-30°C to 55°C)
• Power Source - DC provided by the TracNet Hub or Hub+
• Single coax cable connection
