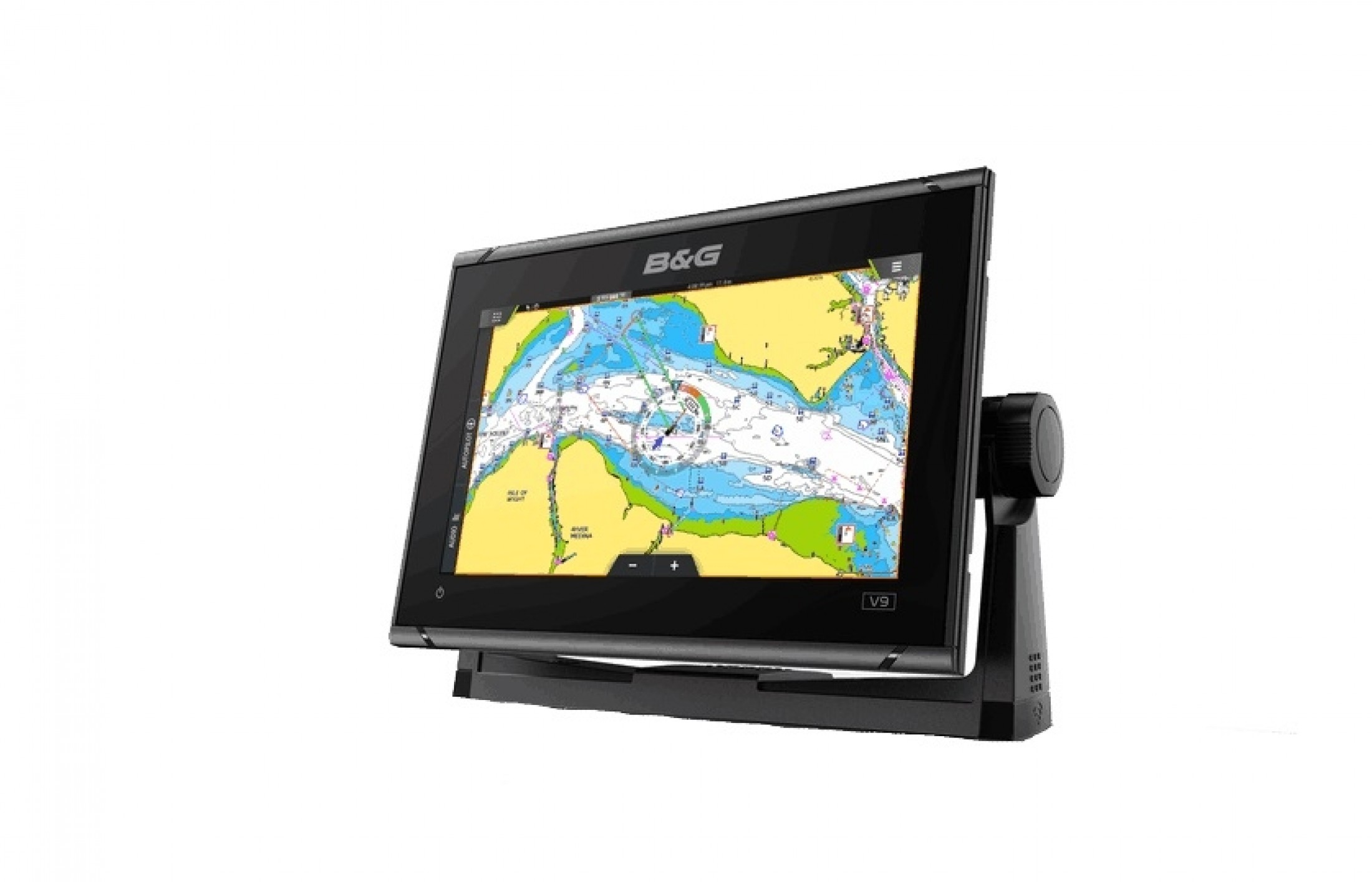

B&G VULCAN 9FS 9" Display No Transducer Basemap

B&G Vulcan 9 FS 9" Multifunction display

Model: 000-13214-001

Easy to use multi-touch user interface
Glass dash styling
Super bright widescreen display
Radar integration
Built in Wi-Fi connectivity
Built in 10 Hz, high sensitivity GPS antenna
Dual Micro SD card slots
Built in echosounder (Broadband & Chirp)
Built in ForwardScan sonar
Operates with ZC1 and ZC2 Remote controller
Advanced NMEA2000 networking
BEP C-Zone Integration
Fusion Link and sonicHub2 Audio Support
AIS SARTs
NMEA Data Logging
GRIB Weather support
H5000 system integration
SailSteer, Laylines with Sailing Time, WindPlot
Adjustable page split ratios and panel layouts
Best in Class Cartography support

The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.

Specifications

Mechanical/Environmental
Casing	PC/ABS
Operating temp	-15°C to +55°C (+5°F to +131°F)
Water ingress	IPX6 and 7
Weight (excluding mounting hardware)	1.315 kg (2.9 lbs) - GO9 XSE
Screen brightness	1200 nits
Screen resolution	480 x 800 (H x W)
Viewing angle in degrees (typical value at contrast ratio = 10)	L/R: 70, top: 50, bottom: 60
Electrical
Operating voltage	10 - 17 V DC
Current draw at 13.6 V (sonar off, max B/L)	1 A
Low power standby mode	yes
Protection	reverse polarity and temporary over-voltage to 36 V
Alarm output current	1 A max
Processor	iMX61 single core
NMEA 2000 (compliant)	1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector)
Card reader	Dual microSD

What's in the Box:

Vucan 9 Display
Suncover
Edge Bezel
Dash Mount Kit
4-Pin Power Cable
Gimbal mounting bracket and knobs

SKU: #399971647448359
Weight: 10.14 lbs
Brand: B & G

Model: 000-13214-001
Shipping Dimensions: 0.00" x 0.00" x 0.00"
