The Class B AIS Transponder with GPS navigation function and NMEA 2000™-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder.

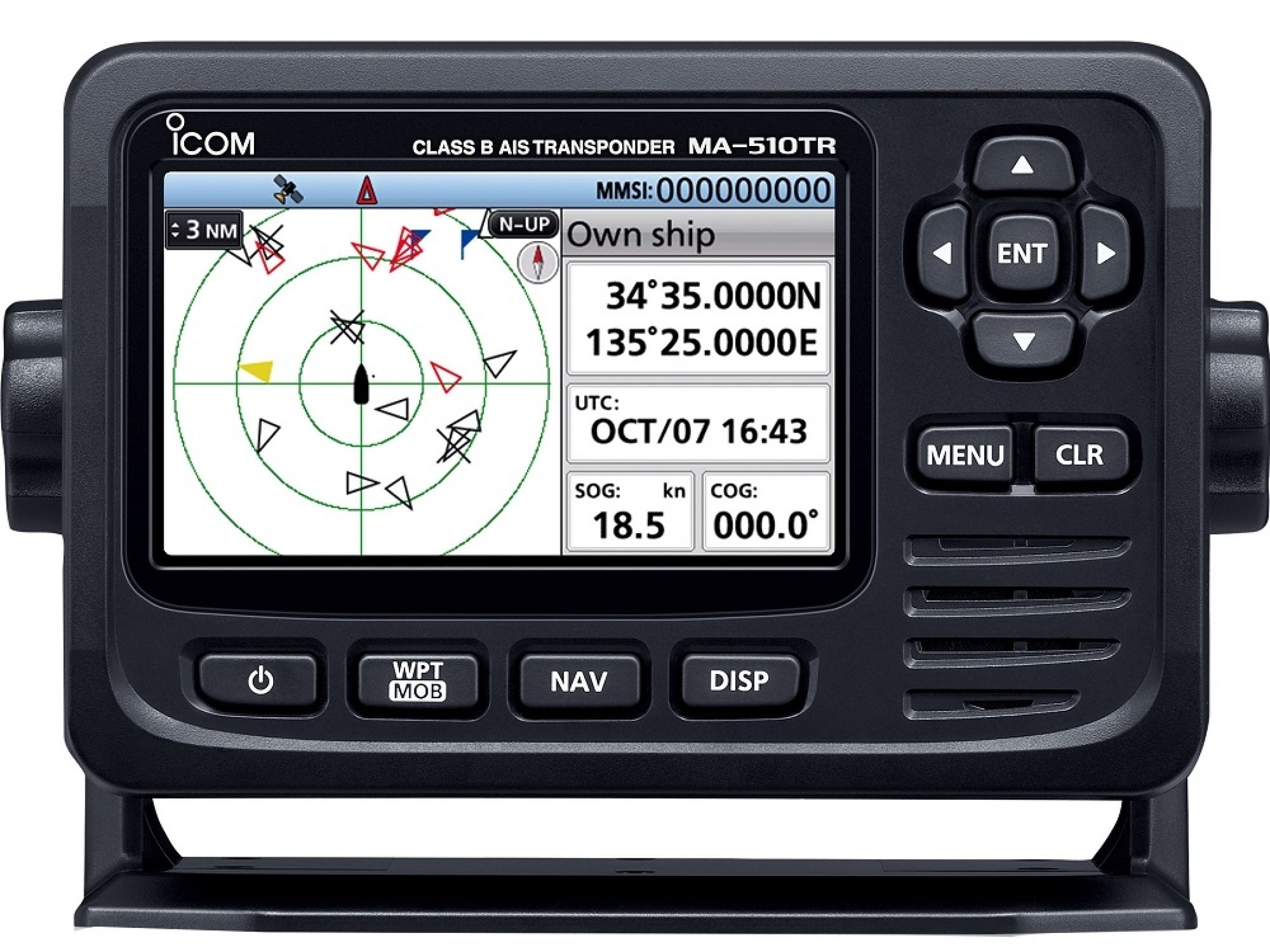

The MA-510TR comes with a 4.3" color TFT LCD. The wide-viewing angle screen provides clear navigation details such as potential collision vessels marked as red, and registered friends marked as yellow. All vessels that are within 6NM CPA and 60 minutes TCPA from a vessel are put into a respective danger or friend list. The day-mode function allows visibility in direct sunlight. Night-mode provides optimal viewing brightness for comfortable operation.
The built-in GPS Navigation function guides users to waypoints or AIS targets. Assign up to 100 destinations or fishing spots.
Operate securely and privately with the silent mode function. Switch off the AIS transmitter to temporarily stop sending out position location. Other AIS signal reports art still received when silent mode is on. Keep fishing spots privately from other vessels by utilizing silent mode.
The MA-510TR can connect to both NMEA 2000™ and NMEA 0183/-HS. Connect to a NMEA 2000™ network such as an external plotter, marine radar and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver and a switch button.
| General |
| Frequency coverage | 161.500 MHz to 162.025 MHz |
| Type of emission | 16K0GXW (GMSK) |
| Antenna impedence | 50 Ohms nominal |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Power supply requirement | Negative ground:
12V or 24V DC nominal
(9.6V to 31.2V) |
| Current drain (at 12V DC) | tx - 1.5A
Rx - 0.7A |
| Dimensions (approximate) (Projections not included) | 6.5 (W) 4.3 (H) 3.6 (D) inches |
| Transmitter |
| Output power | 2W |
| Modulation | 16K0GXW (GMSK) |
| Conducted spurious emission | Less than —36 dBm (9 kHz—1 GHz)
Less than —30 dBm (1 GHz—4 GHz) |
| Receiver (AIS) |
| Sensitivity | Less than —110 dBm |
| Adjacent channel selectivity | More than —31 dBm |
| Spurious response | More than —31 dBm |
| Intermodulation | More than —36 dBm |
| Conducted spurious emissions | Less than —57 dBm (9 kHz—1 GHz)
Less than —47 dBm (1 GHz—4 GHz) |
| Blocking | More than —15 dBm (±0.5 MHz ±5 MHZ)
More than —23 dBm (±5 MHz — ±10 MHz) |
| Co-channel | More than -111 dBM |
| Receiver (DSC) |
| Frequency coverage | 156.525 MHz |
| Type of emission | 16K0G2B |
| Sensitivity | Less than —110 dBm |
| Adjacent channel selectivity | More than 70 dBm |
| Spurious response | More than -34 dBm |
| Intermodulation | More than -39 dBm |
| Blocking | More than -20 dBm |
| GPS Antenna |
| Received frequency | 1575.42 MHz |
| Acquisition | 72 ch (maximum) |
| Differential satellites | WAAS, EGNOS, MSAS, GAGAN |
| Dimensions (approximate) | 96.2 225 (H) mm, 3.8 8.9 (H) inches |
| Cable length (approximate) | 32.8 ft |
| Data Interface |
| USB (Type-B Mini) | GGA, GNS, GLL, GSA, GSV, RMC, VTG, VDM, VDO, ACA, ACS, ALR, TXT |
| NMEA 2000™ Input | 059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545 |
| NMEA output | 059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811 |
| NMEA 0183 NMEA Input/Outpu | 4800—38400 bps Input/Output, sentence format (Output: GGA, GNS, GLL, GSA*1, GSV*1, RMC, VTG, GBS, DTM, DSC) |
| External GPS Input | 4800—38400 bps Input, sentence format (GGA, GNS, GLL, RMC, VTG, GBS*2, DTM) |
| AIS Output | 38400 bps Output, sentence format (VDM, VDO, ACA, ACS, ALR, TXT) |
| *1 Only 38400 bps. |
| *2 When a received GPS signal does not include a GBS sentence, the transponder will not receive the signal from the external GPS receiver |
