Xantrex Solar MPPT 30A Charge Controller

$346.84 $312.16 (Available - Call for Info 877-999-3699)
SALE!
Xantrex
Reviews (0)

Xantrex Solar MPPT 30A Charge Controller

$346.84 $312.16 (Available - Call for Info 877-999-3699)

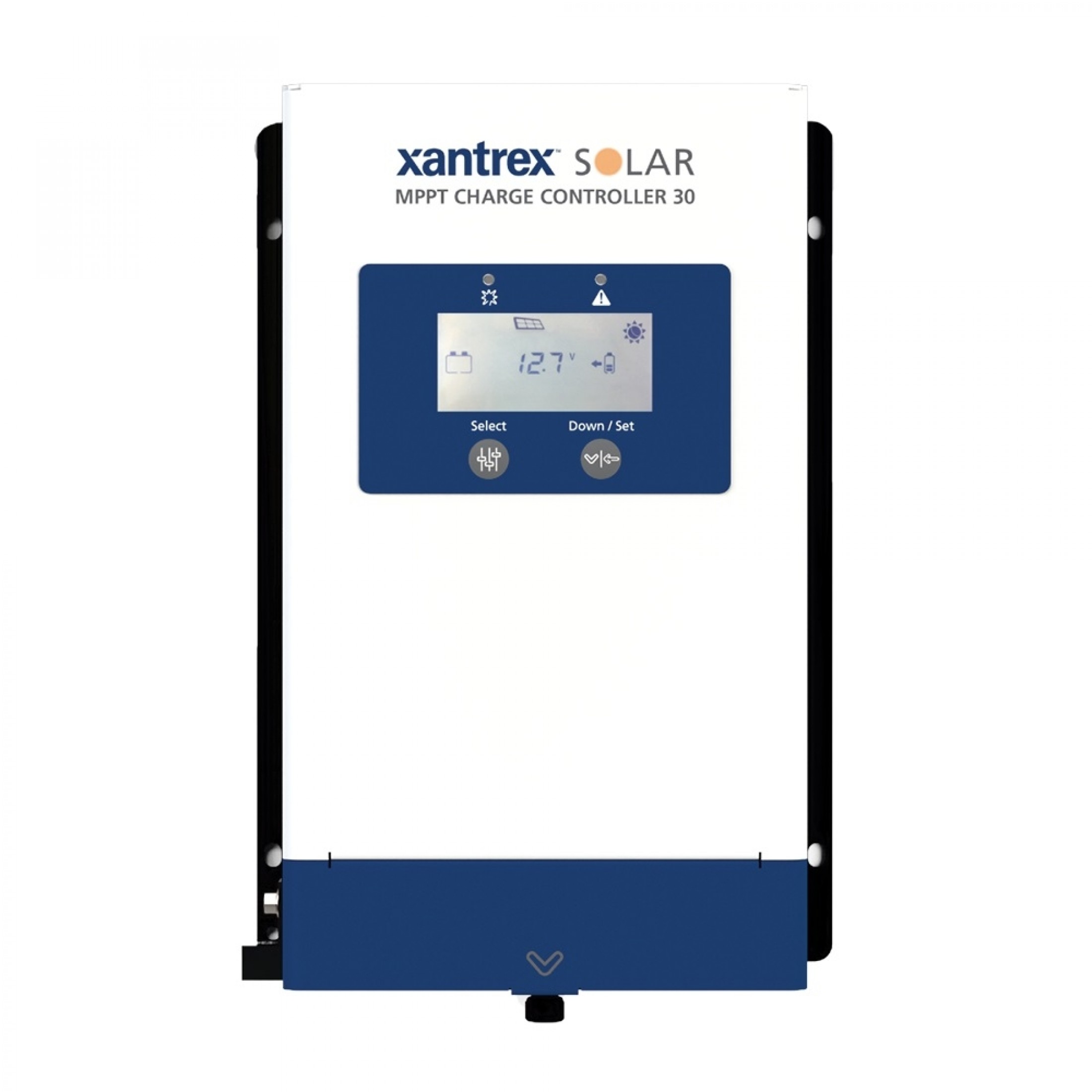

Xantrex MPPT Charge Controller

Model: 710-3024-01
  • Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology
  • Dual-battery bank charging to simultaneously charge house and starter... Read More...

SKU: #348801632861689 | Model: #710-3024-01

Share:

Description Returns

Xantrex MPPT Charge Controller

Model: 710-3024-01
  • Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology
  • Dual-battery bank charging to simultaneously charge house and starter batteries
  • Best-in-class PV array and battery protections
  • House battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate(LiFePO4)

Designed to charge lithium ion batteries including LIFePO4, the 30 A MPPT (Maximum Power Point Tracking) charge controller features an industry leading 98% charging efficiency and dual bank output to charge and maintain house and starter batteries.

The Xantrex Solar MPPT Charge Controller 30 features advanced Maximum Power Point Tracking (MPPT) technology, providing an instant upgrade to your solar system with up to 30% more power compared to PWM charge controllers. Offering greater flexibility, simplicity, and efficiency in PV array designs, higher voltage PV arrays can be used up to 72V (nominal). Equipped with dual-battery bank charging ports ideal for simultaneously charging and maintaining 12V house and starter batteries, best-in-class PV array and battery protections, and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor and remote panel.

Specifications
Nominal System Voltage12/24V Auto-Detect
Rated Charge CurrentBattery 1: 30A
Battery 2: 1A
Battery Voltage Range8 to 32V
Max. PV Open Circuit Voltage100V
MPP Voltage Range(Battery voltage + 2V) up to 72V
Max. PV Input Power12V: 580W
24V: 1170W
Rated Charge Power12V: 390W
24V: 780W
Battery Types Supported*Battery 1 (House): Lead-acid battery (Sealed(AGM) / Gel / Flooded) Lithium Iron Phosphate (LiFePO )
Battery 2 (Starter): Lead-acid battery (Sealed(AGM) / Gel / Flooded)
Self-consumption12V: 17mA
24V: 10mA
GroundingCommon negative
ENVIRONMENTAL DATA
Storage Temperature Range -20°C to 70°C
Operating Temperature Range-25°C to 45°C (fully-rated output)
MECHANICAL DATA
Dimensions 5.91" W X 9.92" H X 2.64" D (165.0mm W X 251.9 mm H x 67.0 mm D)
Max. Cable Size (PV Array and Battery 1)0.63in (16mm ) / 6AWG
Recommended Cable Size (PV Array and Battery 1)0.24in (6mm ) / 10AWG or higher
Max. Cable Size (Battery 2)0.16in (4mm ) / 12AWG
Recommended Cable Size (Battery 2)0.04in (1mm ) / 18AWG or higher

  • SKU: #348801632861689
  • Weight: 2.00 lbs
  • Brand: Xantrex
  • Model: 710-3024-01
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
