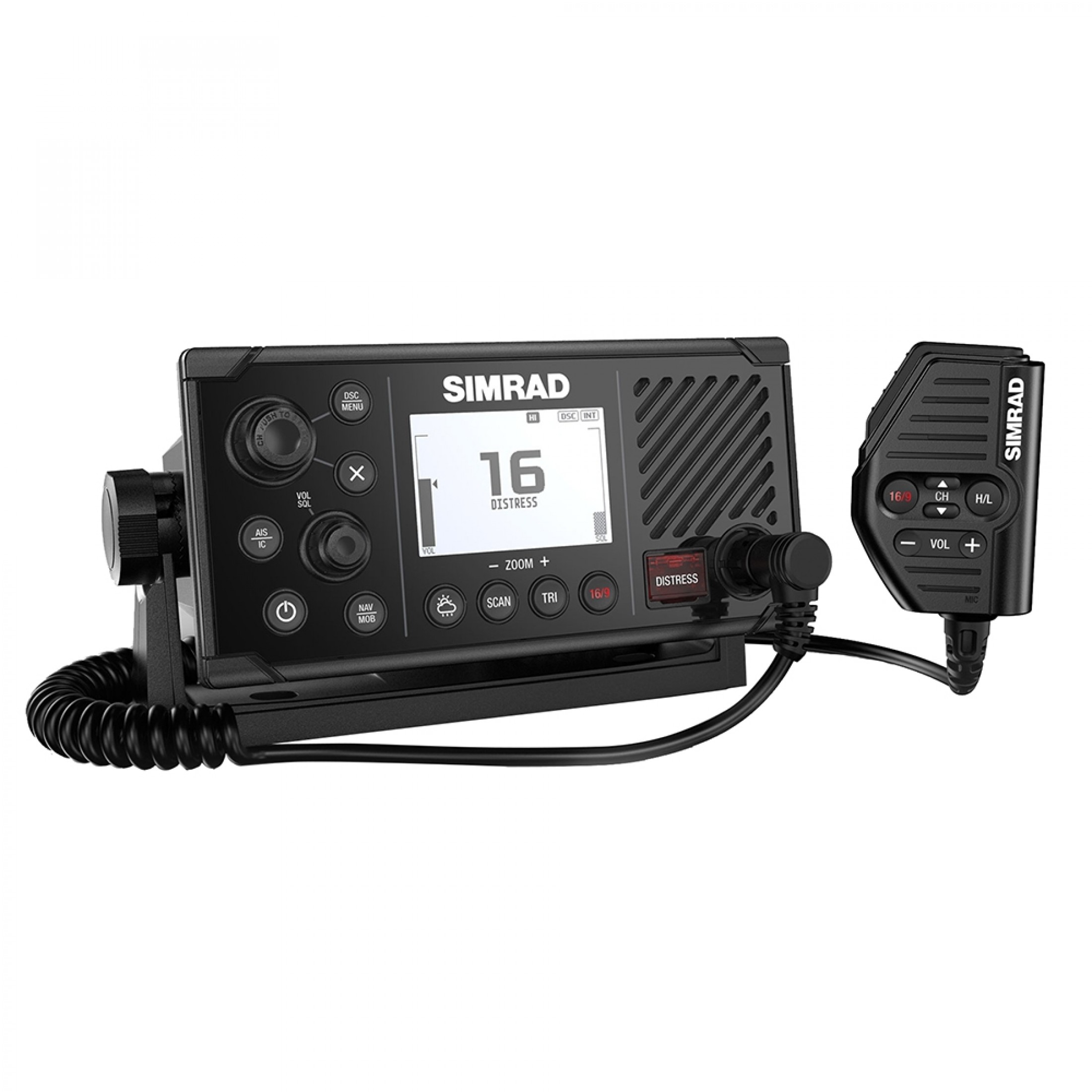

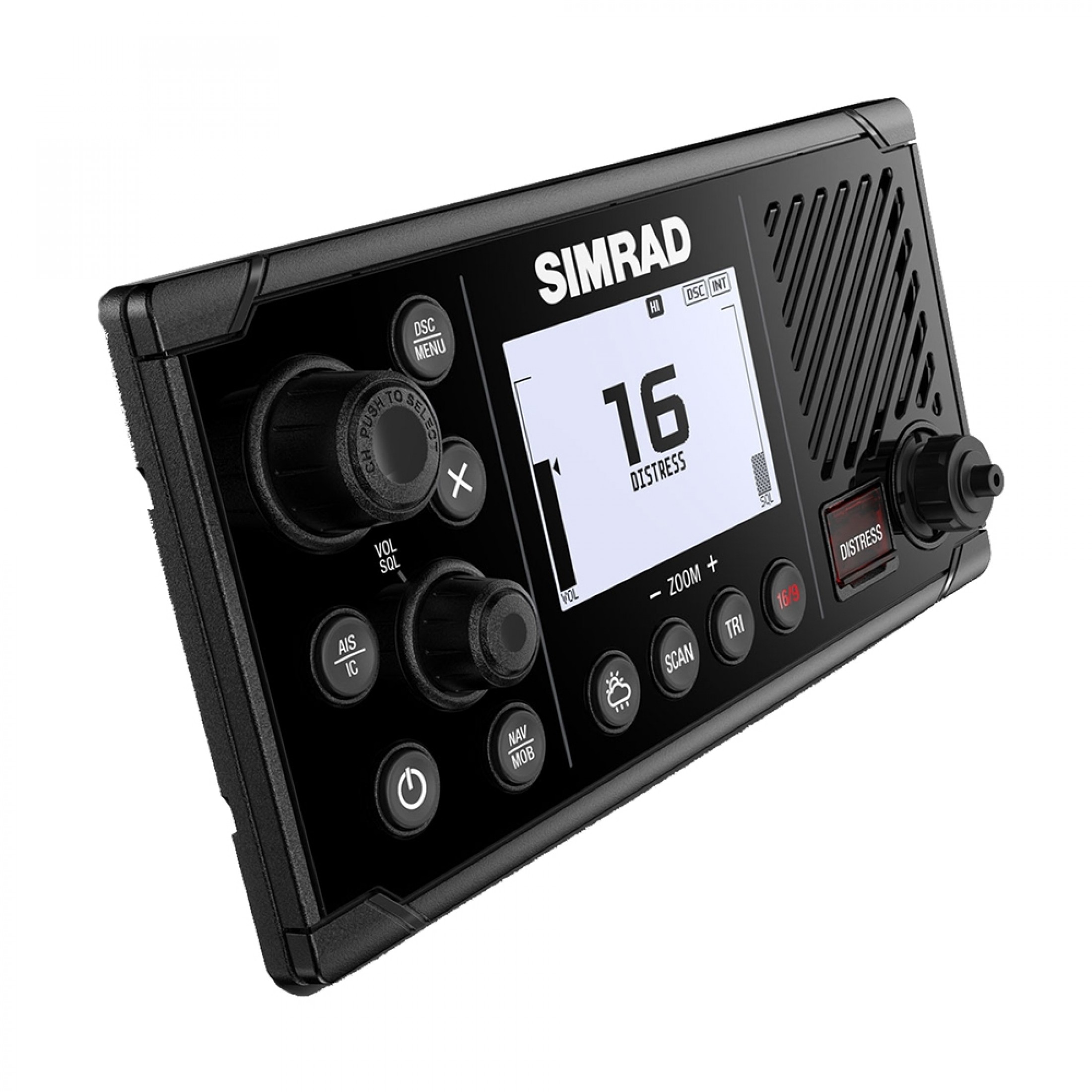

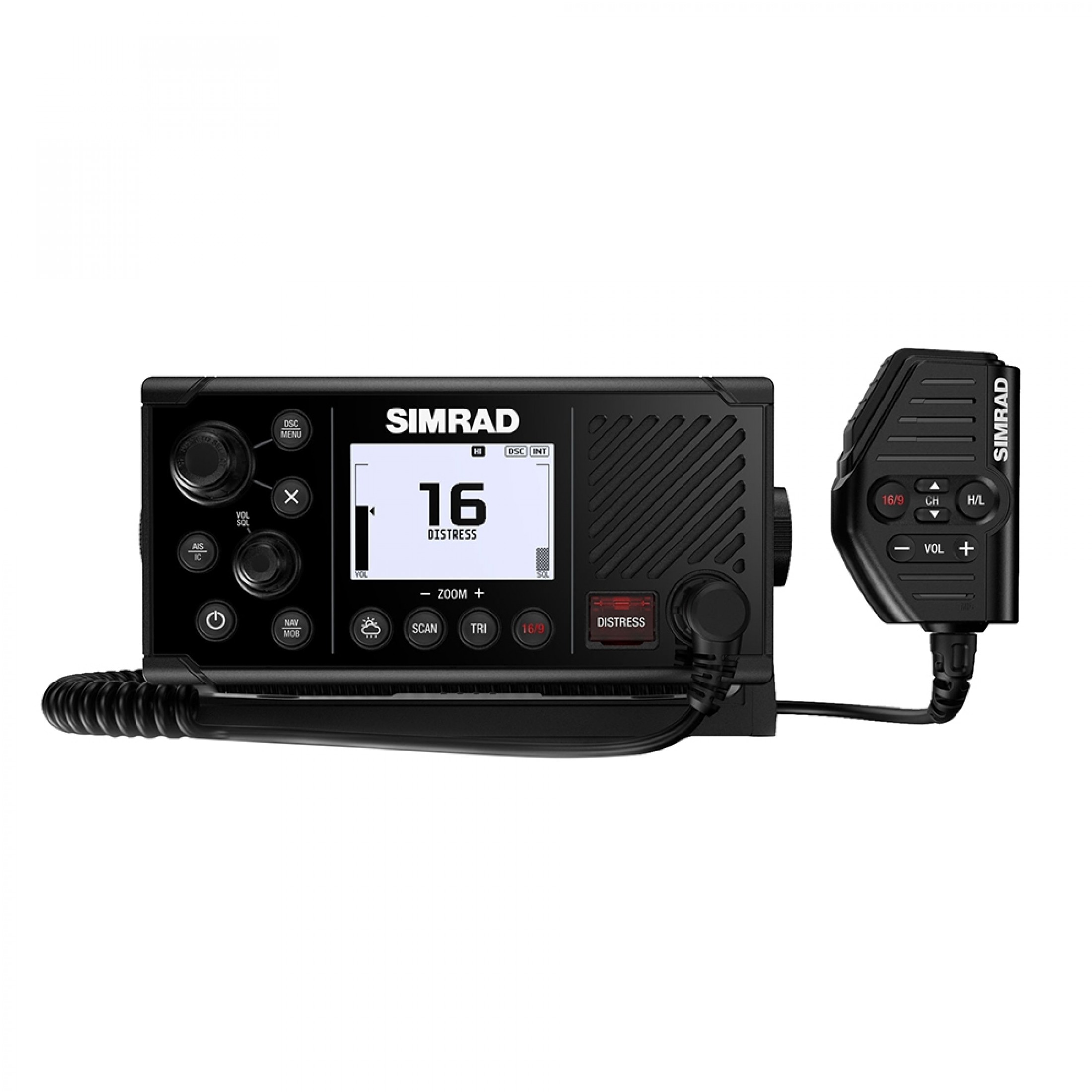

Simrad RS40 VHF Radio w/DSC & AIS Receiver

Discontinued - There may be a replacement item available, please call us 877-999-3699
Simrad
Reviews (0)

Simrad RS40 VHF Radio w/DSC & AIS Receiver

Discontinued - There may be a replacement item available, please call us 877-999-3699

Simrad RS40 VHF AIS-RX

Model: 00014470001
  • Simrad RS40 Replaces the current RS35 mid level VHF, updated to comply with EN 301 025 (v2.2.1)
  • New front mountable design for easy installation
  • Low profile design to align with style of Simrad... Read More...

SKU: #338851632859533 | Model: #000-14470-001

Description Returns

Simrad RS40 VHF AIS-RX

Model: 00014470001
  • Simrad RS40 Replaces the current RS35 mid level VHF, updated to comply with EN 301 025 (v2.2.1)
  • New front mountable design for easy installation
  • Low profile design to align with style of Simrad MFD’s
  • Seamless integration with a wider Simrad system through NMEA 2000 and 0183
  • Built in AIS Receiver
  • Large screen with intuitive user interface
  • Optional wireless handsets with inductive charging
Specifications
Temperature range-15 to +55°C (+5 to +131°F)
WaterproofIPX7
Normal Working Voltage+13.6 V DC
Minimum operating Voltage?10 V DC
Low battery detect Voltage10.5 ± 0.5 V DC
Over Voltage Protection>15.8 ± 0.5 V DC
Hailer Audio Power Out30 W
Current Drain RX Max Audio Power?1.5 A
Current Drain Stand-By RX?0.45 A
Current Drain At 12V DC : Hi Power TX?6 A
Current Drain At 12V DC : Lo Power TX?1.5 A
Frequency Range: Transmit156.025?157.425 MHz
Frequency Range: Receive156.050?163.275 MHz
ChannelsPLL
ModulationFM(16KOG3E) DSC(16K0G2B)
Channel Spacing25 KHz
Frequency Stability±5 PPM
Digital Selectivity Calling (DSC)Class D
LCD DisplayFSTN 256x160 Pixels
AIS Max Targets150
Intermediate Frequency : 1st38.85/21.7 MHz
Intermediate Frequency : 2nd450 KHz
Sensitivity : 12dB SINAD?-6 dBuV(EMF)
Squelch Sensitivity: at tight? 6 dBuV(EMF)
Spurious Response Rejection Ratio?70 Db
Adjacent Channel Selectivity?70 dB
Intermodulation Response?68 dB
S/N at 3KHz Dev.?40 dB
Audio Output Power At THD 10%?2.5 W
Audio Distortion?10 %
Audio Response+1 to -3dB of 6dB/octave from 300hz to 3kHz
Current Drain Max Audio Power?1.5 A
Current Drain Stand-By?0.45 A
2ND RX Sensitivity For 12dB SINAD? 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm? 10-2
Frequency error?±1.5KHz KHz
RF Power : Hi23 ± 2 W
RF Power : Lo0.8 ± 0.2 W
Maximum Deviation?± 5 KHz
S/N at 3KHz Dev.?40 dB
Modulation Distortion±3KHz ?10 %
Audio Response at 1KHz Dev.+1 to -3dB of 6dB/octave from 300hz to 3KHz dB
Spurious/Harmonic Emissions: Hi/LO?0.25 uW
Modulation Sensitivity?15 mV
DSC TX deviation at 1.3K2.6±0.26 KHz
DSC TX deviation at 2.1K4.2±0.42 KHz
ATIS TX deviation at 1.3 KHz1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz2.1±0.21 KHz

  • SKU: #338851632859533
  • Weight: 7.72 lbs
  • Brand: Simrad
  • Model: 000-14470-001
  • Shipping Dimensions: 0.00" x 11.00" x 0.00"
