Humminbird HELIX7 CHIRP MEGA DI GPS G3N Control Head Only
Model: 411070-1CHOSKU: #308971632859426 | Model: #411070-1CHO

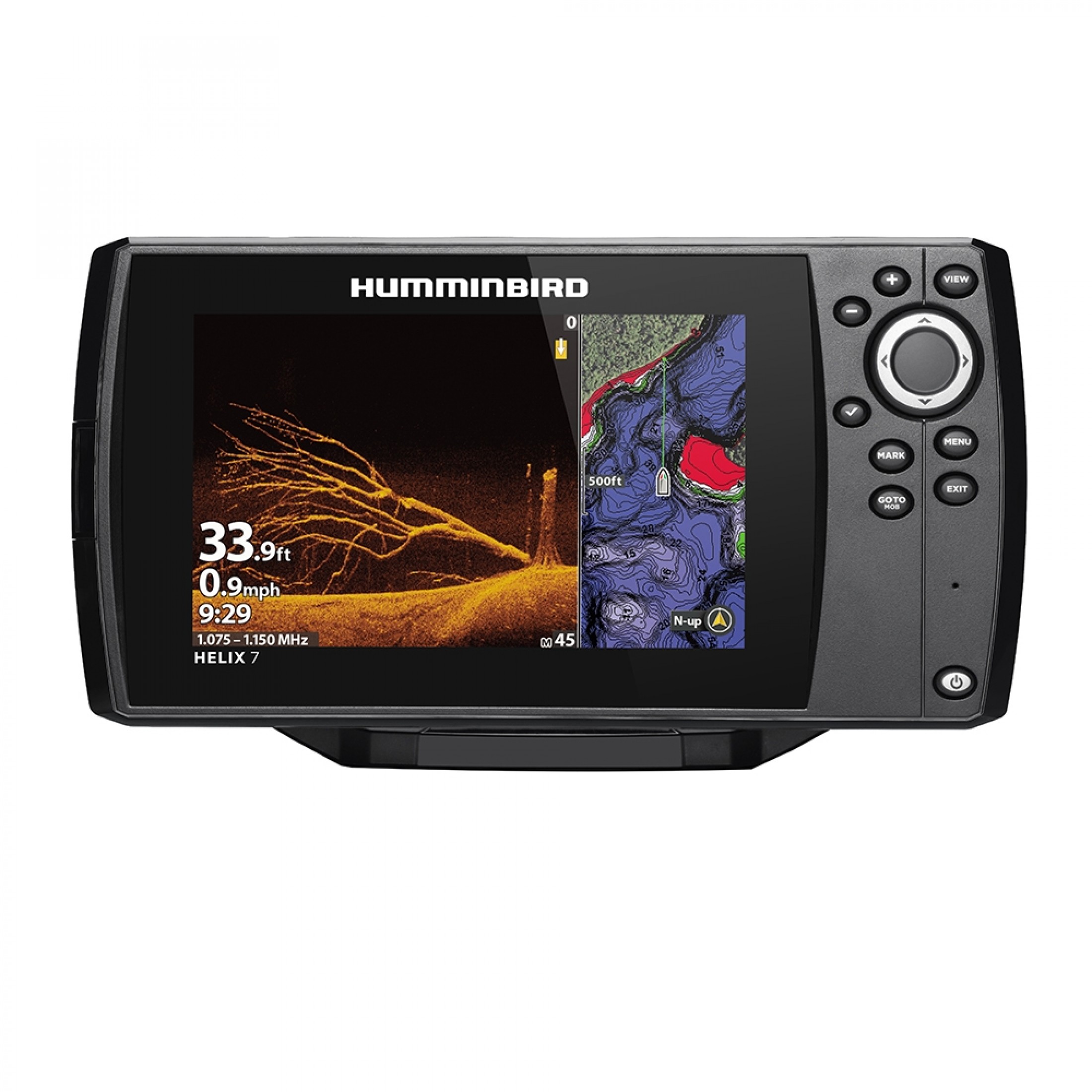

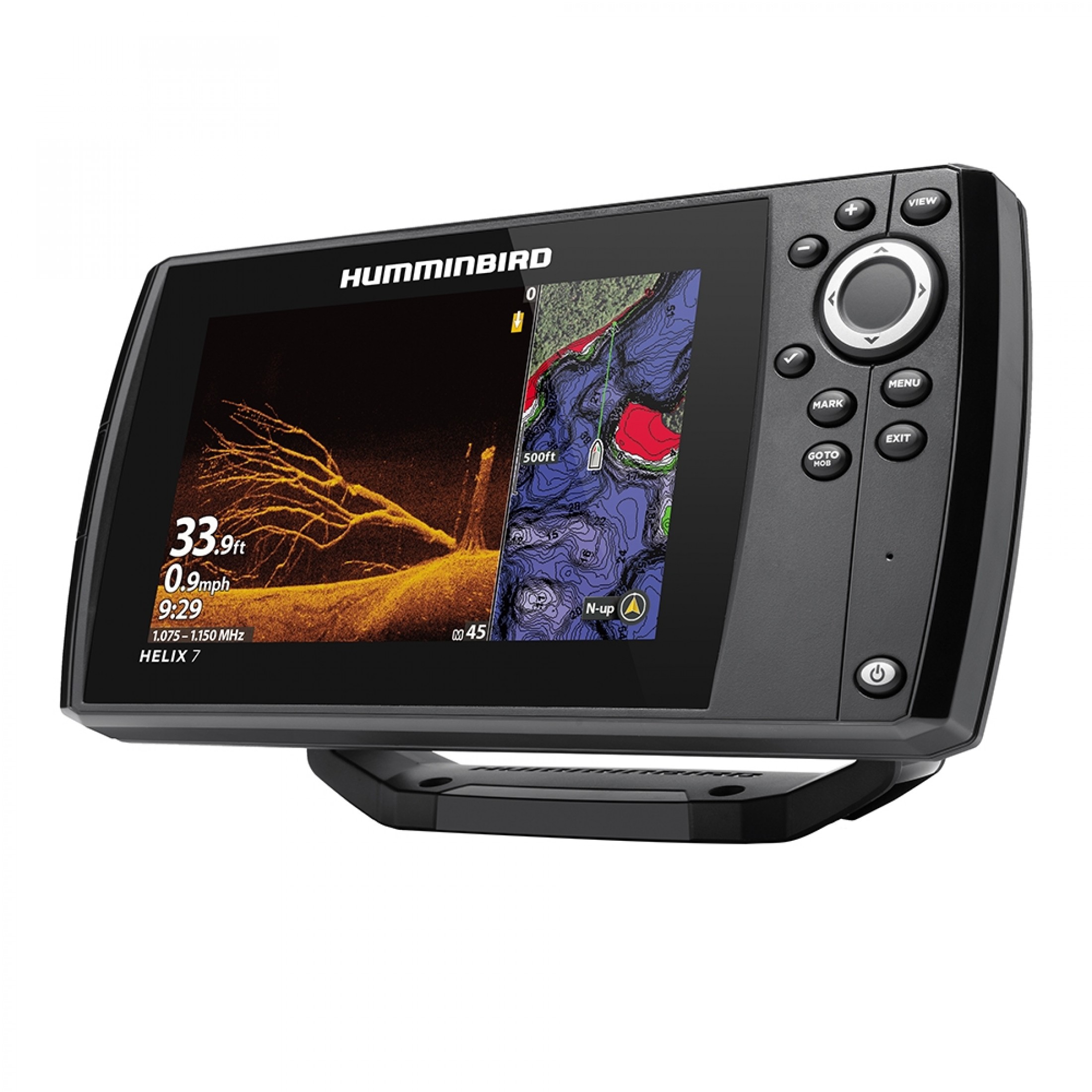

Humminbird HELIX7 CHIRP MEGA DI GPS G3N Control Head Only
Model: 411070-1CHOThe HELIX 7 CHIRP MEGA DI GPS G3N fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, ethernet networking capability, Bluetooth connectivity, AutoChart Live, GPS and Humminbird Basemap built-in. The 7", ultra-wide display gives you ample room to view the many pre-loaded split screen view options.
This item is a conrol head only. Transducer sold separately.
Specifications| Series | HELIX |
| Display Size - Diagonal | 7" |
| Display Pixel Matrix | 800H x 480V |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Down Imaging |
| Sonar-Optional | 50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported | Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455 kHz |
| Depth-Sonar | 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) |
| CHIRP - Imaging-Frequencies Supported | 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz) |
| Depth-Down Imaging | 125 ft (MEGA), 350 ft (455 kHz) |
| Interface | Keypad Control |
| Memory Card Slot | Single Micro SD vvvvv |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54" W x 5.8" H x 3.68" D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54" W x 5.44" H x 1.13" D |
| Transducer Included | None |
| Transducer Mount Location | NA |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 45, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yed |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Optional |
| Target Separation | 2.5" |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
