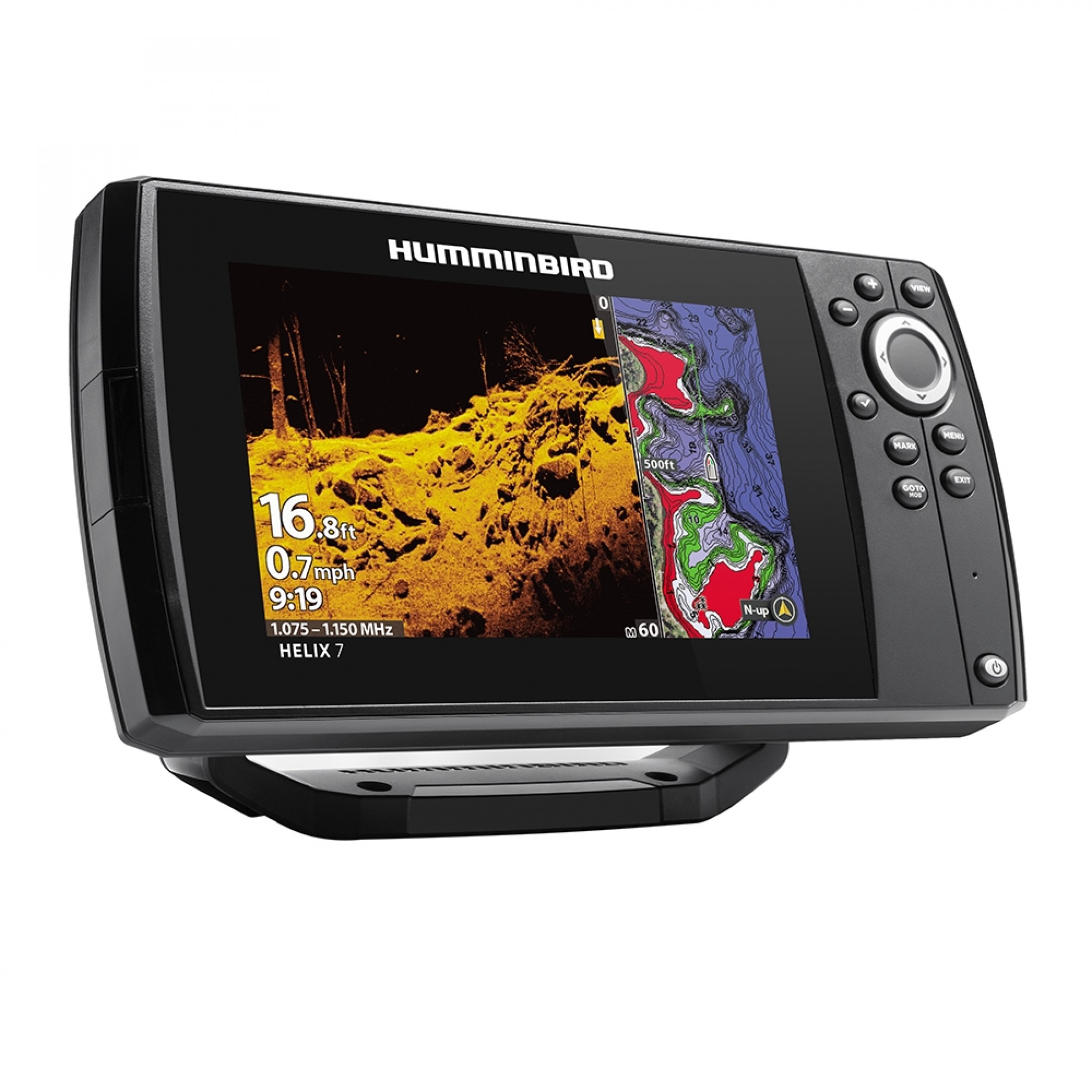

Humminbird HELIX® 7 CHIRP MEGA DI Fishfinder/GPS Combo G3 w/Transom Mount Transducer

Humminbird HELIX7 CHIRP MDI GPS G3

Model: 410940-1

NEW to HELIX 7- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging sonar.
Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count
Includes transducer and mounting hardware, power cable, gimbal mounting bracket.

The HELIX 7 CHIRP MEGA DI GPS G3 fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, GPS and Humminbird Basemap built-in. The 7", ultra-wide display gives you ample room to view the many pre-loaded split screen view options.

################

Specifications

Series	HELIX
Display Size - Diagonal	7"
Display Pixel Matrix	800H x 480V
Sonar-Standard	Dual Spectrum CHIRP, MEGA Down Imaging
Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported	Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported	50/83/200/455 kHz
Depth-Sonar	1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported	MEGA DI (1075-1150 kHz), 455 kHz (440-500 kHz)
Depth-Down Imaging	350 ft (455 kHz), 125 ft (MEGA)
Interface	Keypad Control
Memory Card Slot	Single Micro SD
Power Draw	800 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Output RMS	500 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	10.54" W x 5.8" H x 3.68" D
Mount-Standard Size	In-Dash Mounting Kit
Mount-Optional Size	10.54" W x 5.44" H x 1.13" D
Mount-Optional Size	XNT 9 HW MDI 75 T
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
GPS Trackplotting	Included
Waypoints, Routes, Tracks/Points	2,750, 45, 50/20,000
360 Imaging Compatibility	No
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	No
Minn Kota Talon Shallow Water Anchor Compatibility	No
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
Platinum Compatibility	Yes
Radar Compatibility	No
5-Port Ethernet Switch Compatibility	No
AIS Compatibility	Optional
Heading Sensor GPS Compatibility	Yes
NMEA2000	Not Supported
Target Separation	2.5"
Upgradable Software	Yes
View Preset Keys	No
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	Yes
Display Colors Grayscale	16-Bit
Display Type	Color TFT
Temperature	Built In
Temperature Alarm	Yes
Temperature Graph	Yes

SKU: #308921632859425
Weight: 5.00 lbs
Brand: Humminbird

Model: 410940-1
Shipping Dimensions: 0.00" x 17.00" x 14.00"

Owner Manuals

Humminbird HELIX® 7 CHIRP MEGA DI Fishfinder/GPS Combo G3 w/Transom Mount Transducer - Owner Manual
