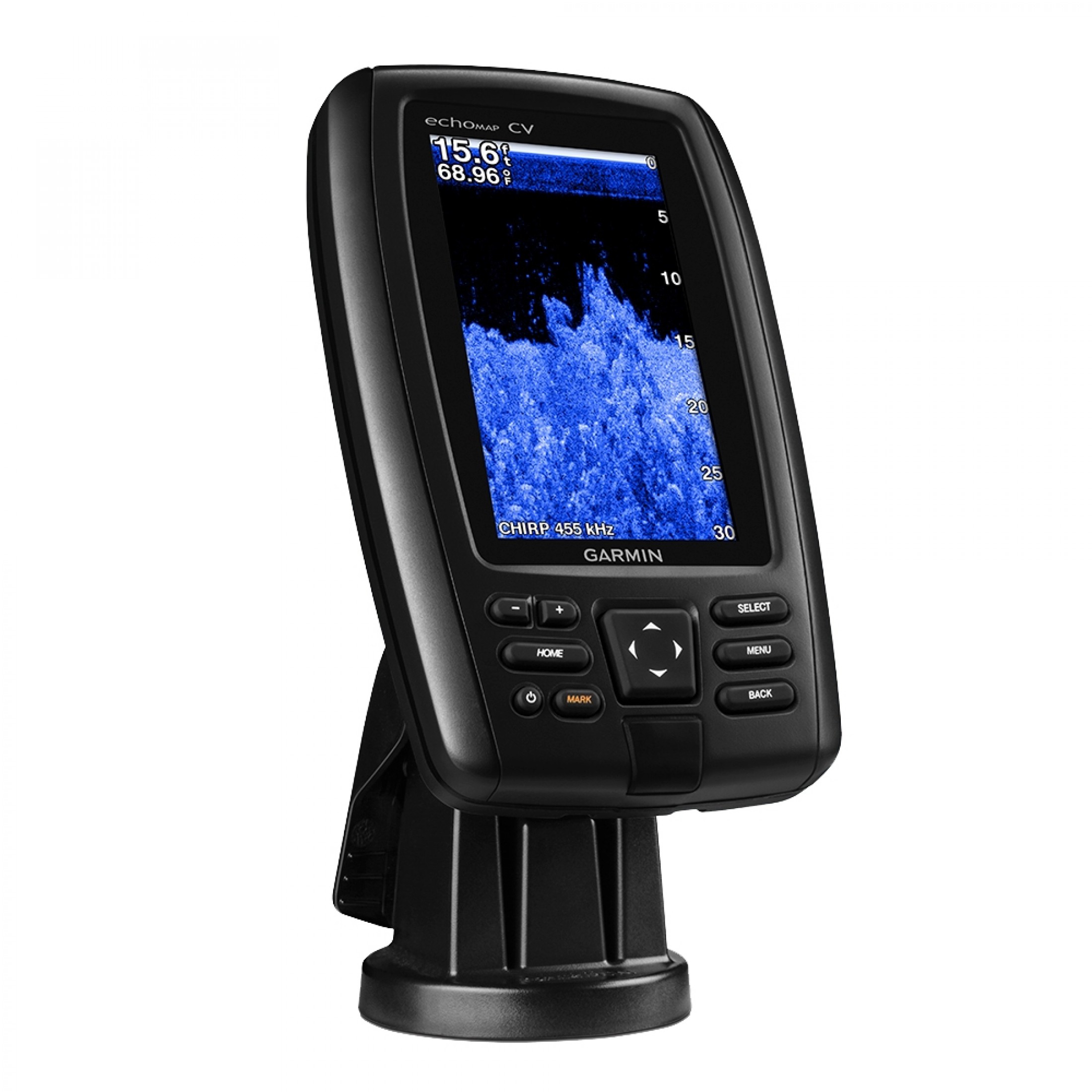

Garmin EchoMap Plus 43cv 4" Chartplotter/Sonar With Transducer and U.S. LakeVü G3 HD Charts
Model: 010-01885-05
- Bright, sunlight-readable 4.3" combo
- Includes GT20 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar with transom and trolling motor mounts
- Preloaded LakeVü g3 maps with integrated Navionics® data cover more than 17,000 lakes with up to 1’ contours
- Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Share waypoints and routes with other ECHOMAP™ or STRIKER™ units
This compact combo has lots of built-in benefits. Easy-to-install and even easier to use, it has a bright screen 4.3" display that is easy to read on a sunny day on the water. It includes a GT20 transducer for traditional Garmin CHIRP sonar that delivers remarkable target separation and CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat. It comes preloaded with LakeVü g3 maps with integrated Navionics data, covering more than 17,000 lakes with up to 1’ contours. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. You own these maps. They are yours to keep private or share with the Quickdraw Community on Garmin Connect™. Plus, you can share waypoints and routes with other ECHOMAP or STRIKER units. It also features a quick-release mount allowing you to quickly install and remove your device from power and mount. Transom and trolling motor mounts included.
The built-in sonar capabilities of ECHOMAP Plus 43cv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.
Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar are combined into 1 transducer.
These highly detailed freshwater maps with integrated Navionics data cover more than 17,000 U.S. lakes, rivers and reservoirs with up to 1’ contours. LakeVü g3 maps give you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, general roads and bridges, designated fishing areas, boat ramps, marinas and campgrounds.
Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
Step up to LakeVü g3 Ultra freshwater maps featuring Garmin Elite survey lakes, or select BlueChart® g3 or premium BlueChart® g3 Vision1 coastal charts, all with integrated Navionics data, Auto Guidance2 technology and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain® app, and automatically sync with your compatible chartplotter, eliminating the need for an SD™ card.
When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
Specifications| Display Size | 2.1" x 3.7"; 4.3" diagonal |
| Display resolution | 480 x 272 |
| Display type | WQVGA display |
| Weight | 1.6 lbs (0.7 kg) |
| Water rating | IPX7 |
| Power consumption | 5W |
| Antenna | Internal or external over NMEA 0183 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | None |
| Preloaded maps | LakeVü g3 (inland maps) |
| Accepts data cards | 1 microSD™ card; 32 GB maximum card size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Tide tables | Yes |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | No |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Transducer pin numbers | 4 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | No |
| Dimensions | 4.0" x 6.5" x 3.1" (10.2 x 16.5 x 0.4 cm) |
What's in the Box:- ECHOMAP Plus 43cv with LakeVü g3 for U.S.
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Hardware
- Documentation
