Furuno FM4800 VHF Radio
Model: FM4800
- Built-in 72 Channel GPS
- Buiult-in AIS receiver
- 25 /1W output power
- Class D DSC
- Loud Hailer/Fog Horn
- NMEA 2000 and NMEA 0183 networking
- Dual Station with optional handset
- 10 Weather channels
- IP67 waterproof rating

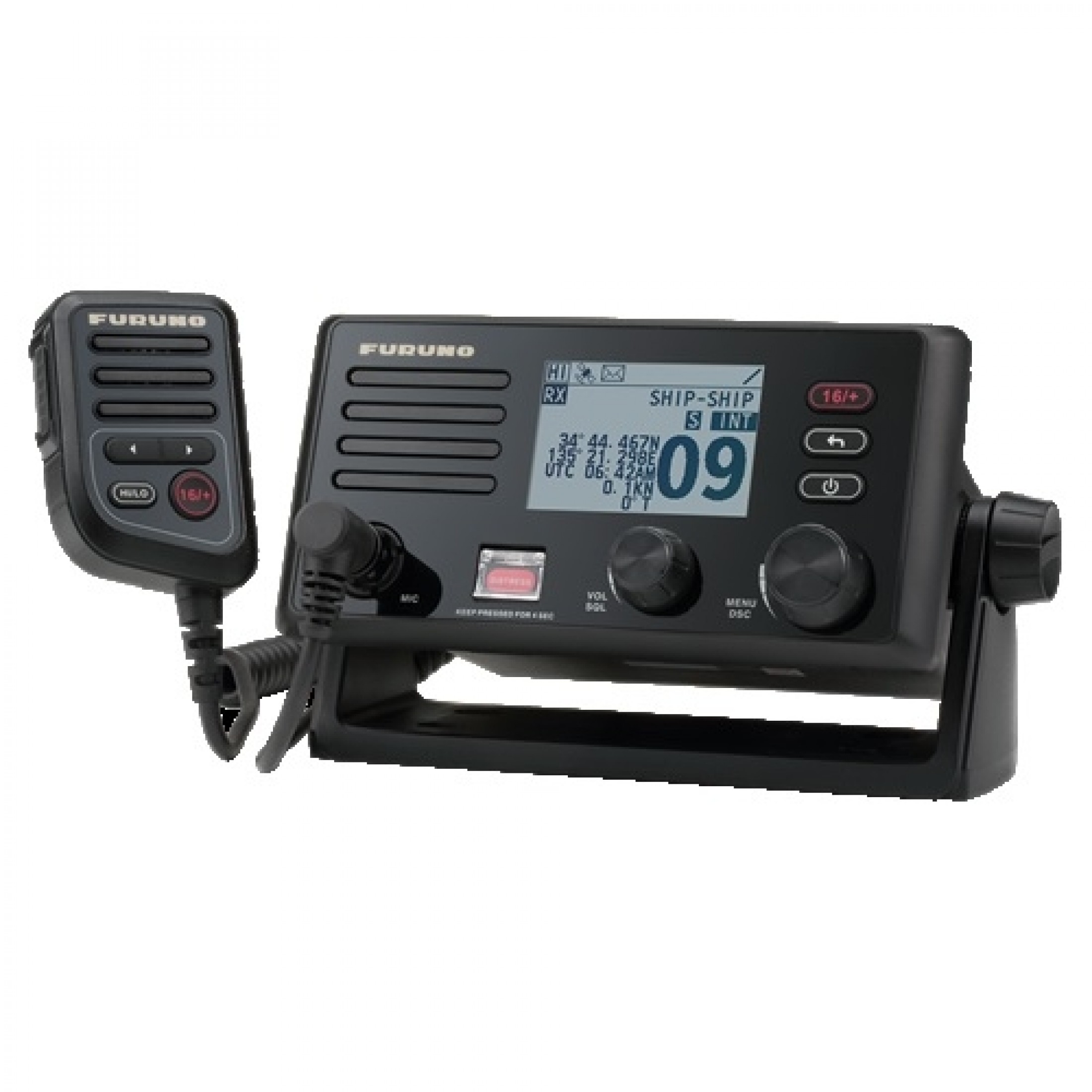

The FM4800 is a new marine VHF radiotelephone with built-in Class D DSC, GPS Receiver, AIS Receiver, and Simplified Loud Hailer with intercom. Its compact housing enables it to be installed in a variety of craft, even vessels where space is limited, such as center-console boats. The unit can be mounted on its lightweight bracket, either desktop or overhead, or it can be flush mounted. The FM4800 shares a common appearance with other Furuno equipment, such as NavNet TZtouch2, NavPilot 711C, and the FI70 Instrument series, offering an integrated appearance to any helm.
With its built-in GPS receiver, the FM4800 does not require an external GPS source to enable its DSC functionality. The unit can be used as a backup source of GPS positioning for other onboard electronics. Its built-in AIS Receiver can be used to overlay AIS targets with networked GPS Plotters or MFD's, such as NavNet TZtouch, NavNet TZtouch2, or GP1871F/GP1971F combo units.
An existing GPS source can be connected to the FM4800, and it can share its own GPS, DSC and AIS information via NMEA0183 or NMEA2000. When connected via NMEA2000 to any NavNet TZtouch2 MFD, DSC calling can be initiated directly from the TZtouch2 MFD by simply tapping on the AIS/DSC target and selecting [DSC Call]. Additionally, when MOB (Man Overboard) is activated on a TZtouch2 MFD, the FM4800 enters a special mode where you can initiate a distress call by simply pushing the rotary knob.
The FM4800 can operate as a simplified Loud Hailer with intercom, featuring 8 patterns of alert sounds. Loud Hailer, Fog Horn and Warning Signal features are all available, enhancing onboard safety and communications while navigating in the dark or fog. When connected with the second-station handset, intercom communications are available, allowing communications between the two devices. Additionally, the horn speaker can be used to collect external sounds and transmit them through the built-in speaker with a function called Listen Back. In this way, a person on the deck can easily communicate with the bridge, a particularly useful feature for a variety of fishing vessels and workboats. The Listen Back function can also be an effective tool on sport fishing vessels, allowing the horn speaker to collect the sound from fishing rods and lines when you get a strike.
What's in the Box:- FM4800
- Mounting bracket
- Mounting Knobs
- Microphone
- Microphone hanger
- Gray cover
- Tapping screws x 4
- UHF Connector
- 8A Fuse
- Cutout template
- Flushmount gasket
- Operators Manual
