Digital 532-VW-S 16' VHF Ant Matches 544-SSW White

Discontinued - There may be a replacement item available, please call us 877-999-3699

Digital Antenna 532-VW-S 16' White VHF Antenna

Model: 532-VW-S
  • Powerful brass radiators
  • Soldered connections
  • Power directing ferrite choke bead
  • High gloss urethane finish
  • 316 stainless steel ferrule
  • 10dB gain

A... Read More...

SKU: #176961632860219 | Model: #532-VW-S

Description Returns

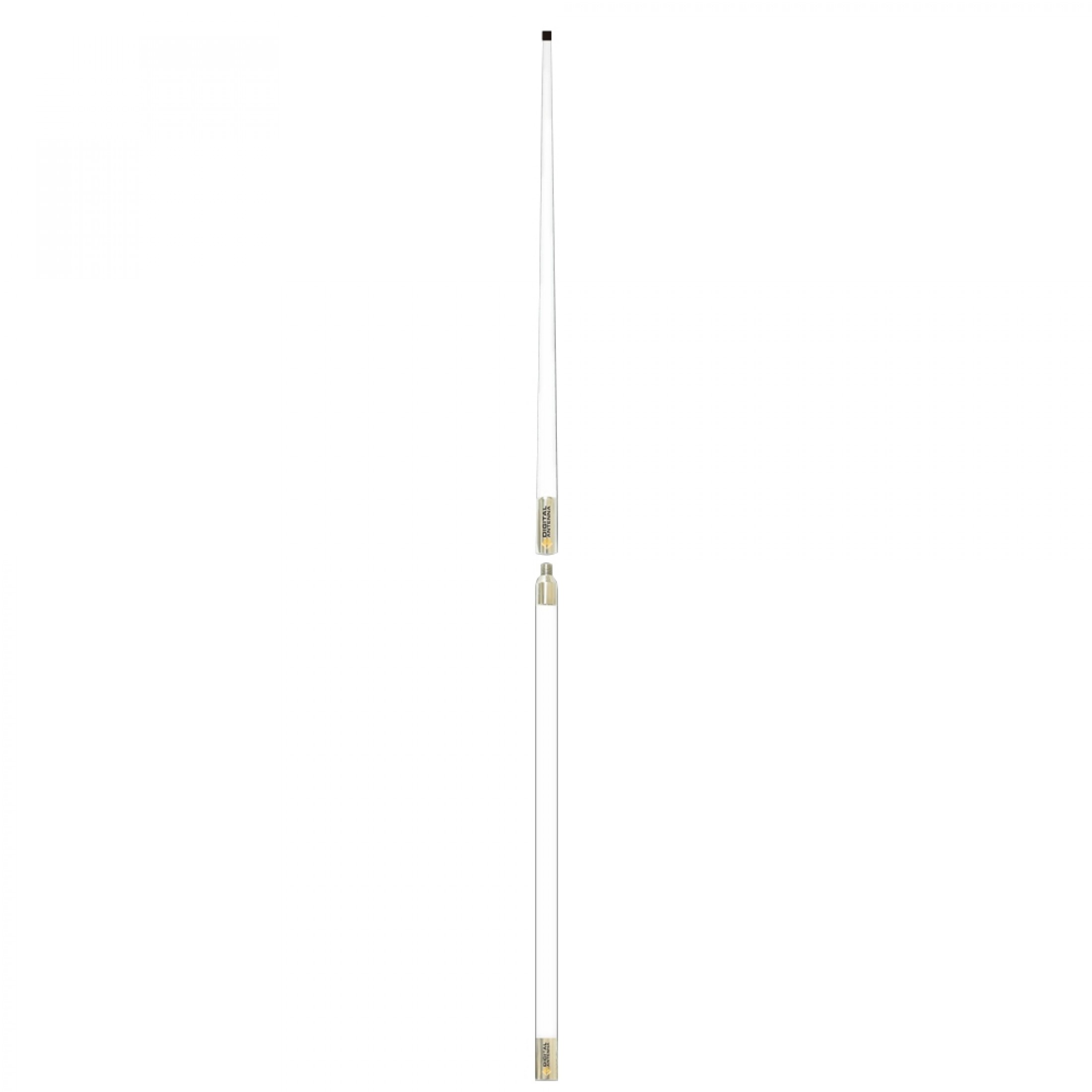

Digital Antenna 532-VW-S 16' White VHF Antenna

Model: 532-VW-S
  • Powerful brass radiators
  • Soldered connections
  • Power directing ferrite choke bead
  • High gloss urethane finish
  • 316 stainless steel ferrule
  • 10dB gain

A favorite of marine professions, Digital Antenna's largest VHF antenna offer the power and durability to achieve maximum range and extended performance, even in the roughest seas. A powerful gain of 10dB and solid construction make Digital Antenna’s 16’ VHF antennas the ideal choice for critical communication onboard large yachts, commercial vessels and base stations.

Customers and installers love the 500 GOLD Series’ easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors.

All of our Digital Antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable.

Digitals Antennas 16' VHF antennas require a side support 3' to 4' from the base of the antenna.

Specifications
MountStandard 1"—14 threaded base.
ConnectorGOLD Factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter.
CableIncludes 20’ exclusive low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable
Radiation PatternOmni-Directional
Gain10 dBi
VSWR<2.0:1 = 151.8-161.8 MHz (10 MHz)
Impedance50 ohms
Maximum power input200 watts
Exterior FinishWhite, UV stable poly-urethane coating
Ferrule316 Stainless Steel
Wind Rating95 mph

What's in the Box:
  • Antenna Top Section
  • Antenna Bottom Section with 20' cable
  • mini-UHF male to UHF male (PL259) adapter

  • SKU: #176961632860219
  • Weight: 13.60 lbs
  • Brand: Digital Antenna
  • Model: 532-VW-S
  • Shipping Dimensions: 3.00" x 96.00" x 3.00"
