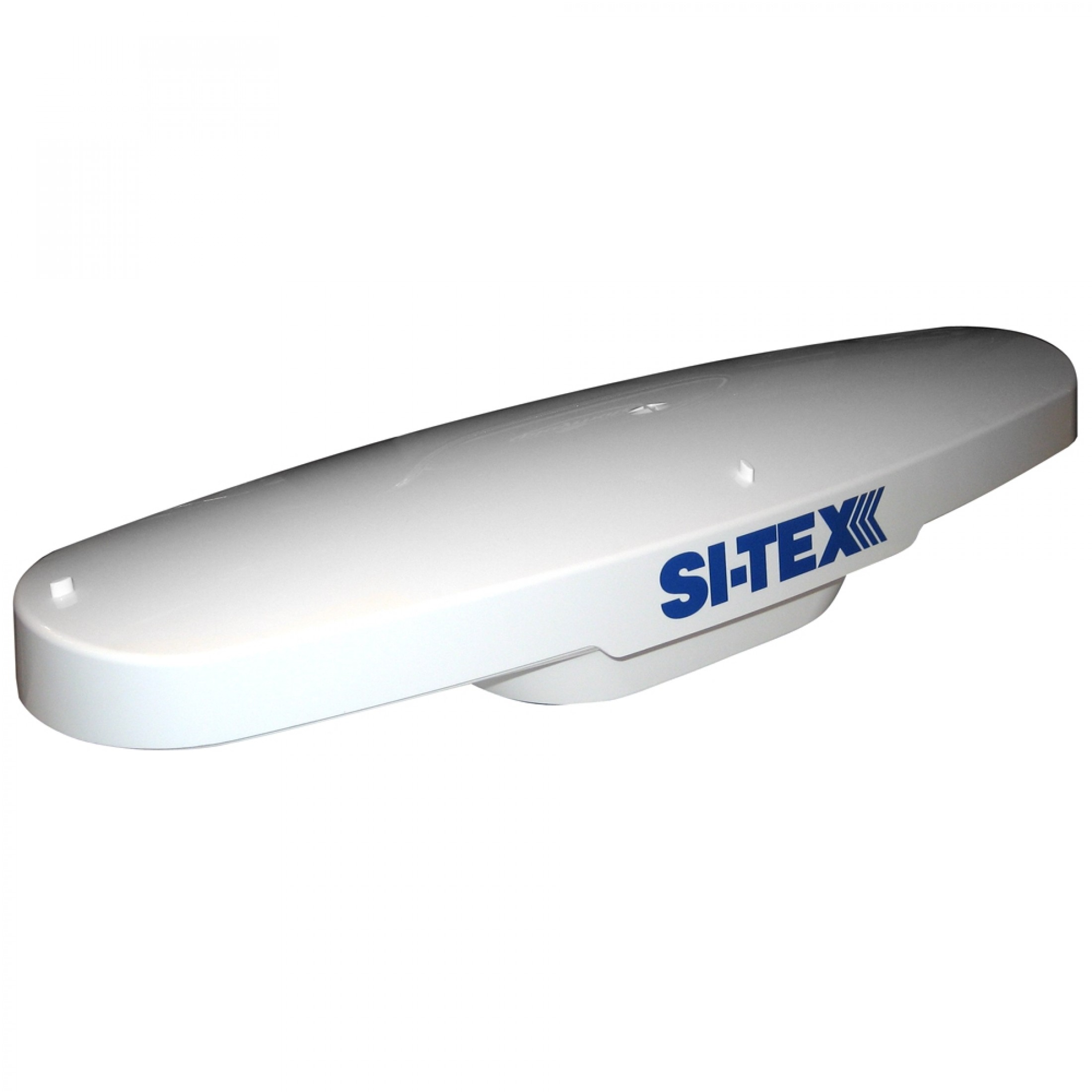

SI-TEX Vector Pro G2 (15) Gyro Compass

Vector Pro GPS Compass

The Vector Pro G2 GPS Compass is a state-of-the-art electronic navigation data device. It is capable of providing highly accurate, high-precision position and heading data to a wide variety of marine Navigation equipment, such as autopilots, sonar, radar, chartplotters, AIS receivers & transponders, and many other types of marine devices & systems.

The Vector Pro G2 features fast start-up and signal re-acquisition times, heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90 degrees per second.

The Vector Pro G2 is a complete GPS Compass in a single rugged, marine-grade enclosure.

Precise 2D heading and positioning data

Heading accuracy of better than 0.5 degrees

Rate of turn tracking rates up to 90'/sec

Provides Heave, Pitch & Roll information

Pitch and roll accuracy of better than 1 degree

Fully compatible with Autopilot, Radar, AIS, PC, Sonar

Better than 1 meter differential position accuracy (DGPS/G2B)

Differential Correction source options include SBAS (WAAS, EGNOSand MSAS) and RTCM SC-104 data (External Source)

G2B can also use terrestrial DGPS Radio beacon signals

Integrated Gyro & Tilt sensors provide heading during momentary lossof satellite signals and speed up GPS signal reacquisition

Heading Position Updates up to 20 Hz

Multiple BAUD rate selections: 4800/9600/19200/38400

Pre-programmed default settings for Heading, Rate of TurnCourse over Ground, Lat/Long Geographic position, Time & Date

Heading solution for steel vessels

Waterproof-commercial grade IP67 standards

CE certified for EMI and RFI immunity

Optional 15m or 30m cable

IMO Compliant

Worldwide Service

Single power/data cable, which greatly simplifies installation.

Power Input 9 to 36 VDC

<360 mA@ 12 VDC, <5 w

Dimensions 23.6"L x 6.3"W x 7.1"H

Weight 3.3lbs

SKU: #13491632859108
Weight: 13.00 lbs
Brand: SI-TEX

Model: VECTORG2
Shipping Dimensions: 10.00" x 28.00" x 12.00"

Owner Manuals

SI-TEX Vector Pro G2 (15) Gyro Compass - Owner Manual
