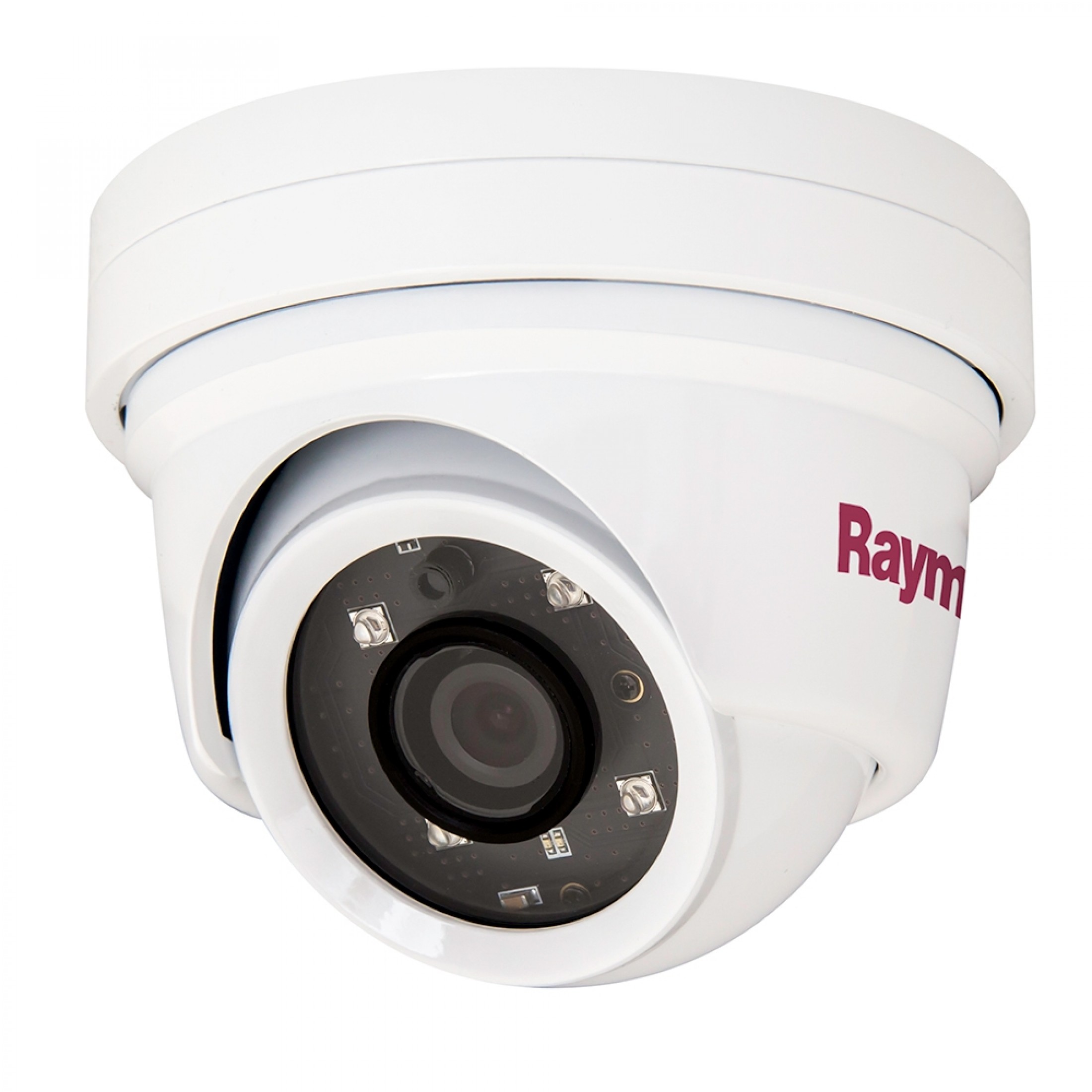

Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications. Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications.
Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.
| System |
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash/SDRAM | 128MB/128MB |
| Camera |
| Image sensor | 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor) |
| Total pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effective Pixels | 1944(H) x 1104(V) 2.15 Megapixel |
| S?N Ratio | More than 50dB |
| Minimum Illumination | 0Lux (IR On) |
| IR Distance | 20M (4 Built-in High Power LED’s) |
| Day & Night | ICR |
| Lens | 3.6mm Wide angle Megapixel Board Lens |
| Field of View | Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg |
| Video |
| Video Compression | H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps |
| Resolution | Up to 1920 x 1080 (Full HD) |
| Frame rate | H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution |
| Video Streaming | Support multi stream with H.264, MJPEG, Adjustable frame rate, CVBR/CBR in H.264 |
| Image settings | Day & Night
Auto White Balance
Shutter Speed (1/4~1/2,000)
DSS
BLC
Brightness, Contrast, Sharpness, Mirror
|
| System integration |
| Security | Password protection, User access log, HTTPS encryption |
| Supported protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
| Intelegent video | Motion detection up to 1920x1080 with 12x12 blocks |
| Physical |
| Power source | DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
| Power consumption | Max. 5.4W with IR |
| LED's | Power, Network Connection |
| Dimensions | 178mm(D) x 66 ( ) |
