Navico Precision-9 Compass

Discontinued - There may be a replacement item available, please call us 877-999-3699

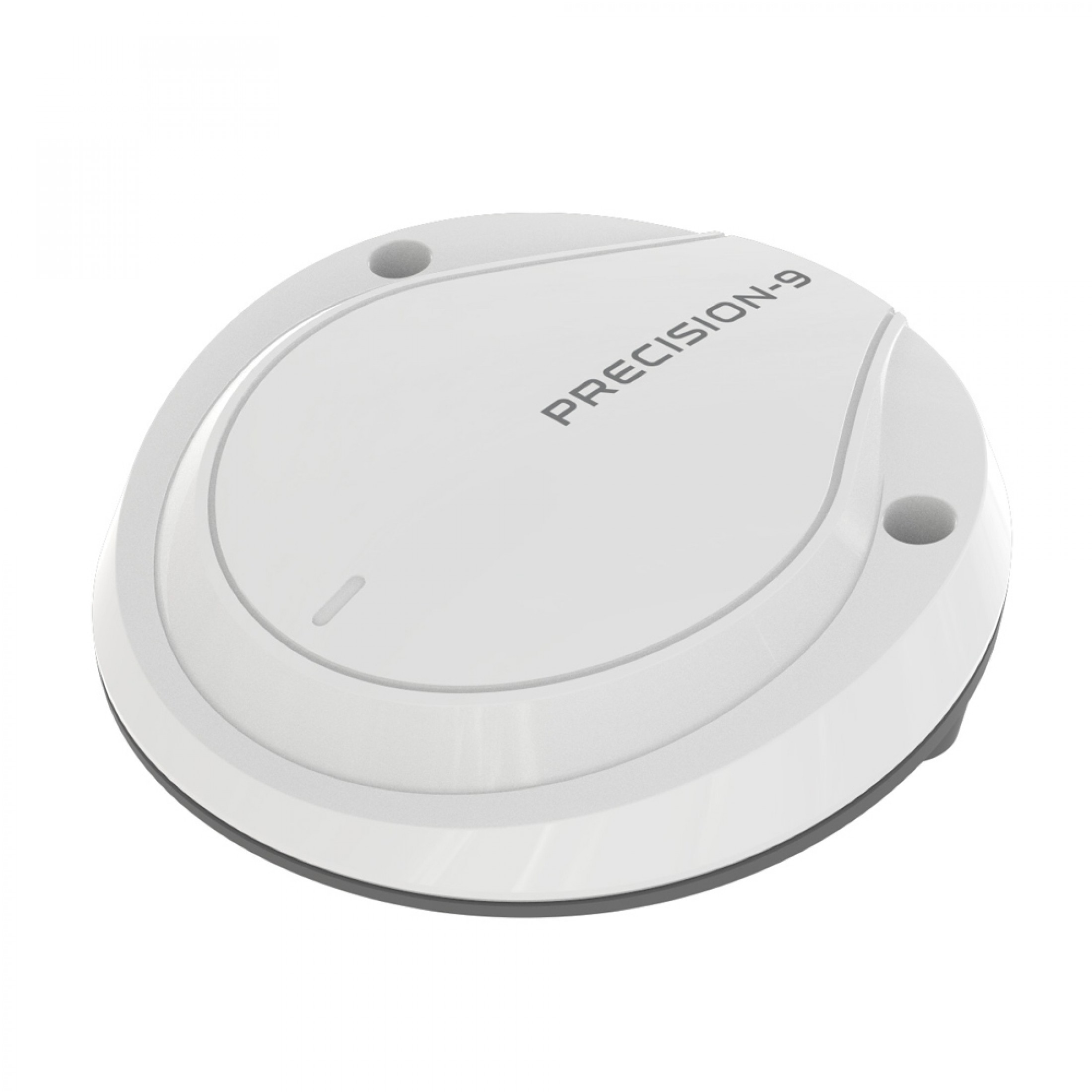

Simrad Precision 9 Compass

Model: 000-12607-001
UPC: 9420024145999

Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
Heading and ROT calculated using sensor data from 9 axes of rotation and motion
Accurate and... Read More...

SKU: #114471632859766 | Model: #000-12607-001

Description Returns

Simrad Precision 9 Compass

Model: 000-12607-001
UPC: 9420024145999

Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
Heading and ROT calculated using sensor data from 9 axes of rotation and motion
Accurate and reliable solid-state sensor technology
Heading accuracy of ±2° after calibration
Easily adjustable mounting bracket allows bulkhead or up-mast installation
IPX7 waterproof. Best in class.
Simple installation with a single NMEA 2000® connection

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Specifications

Supply and Interface	8-16 V via NMEA 2000
Power consumption	0.4 W
NMEA 2000 Load Equivalence No. (LEN):	1
NMEA 2000 ports (input/output):	1
Calibration	Automatic (User Prompted)
Repeatability	± 1.0° (or better)
Roll/Pitch range	± 45°
Heading accuracy:	± 2° after calibration
Dynamic performance:	with random excitation of ± 10° at max 1 Hz: Heading error <2°: with heading step input of 90° at a rate of 10°/s Heading error 10 sec. after turn <2°
Environmental protection:	IPX7
Compass safe distance:	0.5 m (1.7’)
Temperature range operation:	-25 to +65°C (-13 to +149°F)
Temperature range Storage:	-30 to +70°C - (-22 to +158°F)
Dimensions	H: 36 mm (1.42"), W & D: 119 mm (4.69")

What's in the Box:

Precision 9 Compass
N2K-T-RD - Micro-C T-connector
N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable

SKU: #114471632859766
Weight: 1.90 lbs
Brand: Navico

Model: 000-12607-001
Shipping Dimensions: 4.00" x 11.00" x 8.00"
