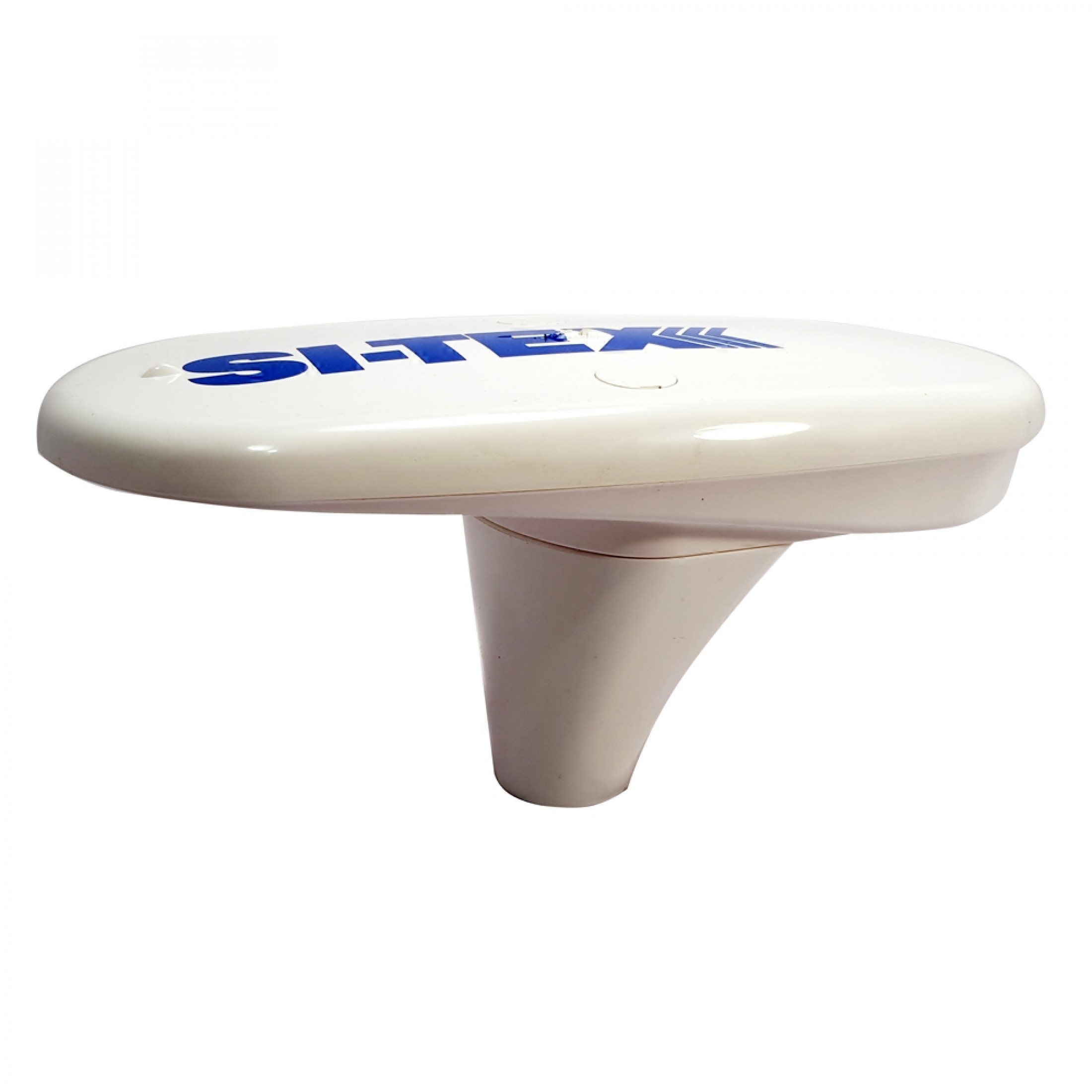

The Vector Compact GPS Compass offers superior navigation including accurate positioning and heading performance. V104 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS position allowing Hemisphere GNSS to provide a low cost and highly effective positioning and heading based smart antenna.

The rugged and low-profile enclosure combines Hemisphere GNSS' Crescent Vector technology and two multi-path resistant antennas for accuracy, portability and simple installation. The smart antenna, measuring in less than a half meter in length, mounts easily to a flat surface or pole. The stability and maintenace-free design of Vector Compact provides traditional GPS position and heading at a low cost, replacing the combination of

low-accuracy GPS and fluxgate compass.

GPS Receiver Specifications:

• Receiver Type: Vector GPS L1
• Compass Signals Received: GPS
• Channels: 24
• GPS Sensitivity: -142 dBm
• SBAS Tracking: 2-channel, parallel tracking
• Update Rate: 10Hz standard (position and heading)
• Rate of Turn: 90x/s maximum
• Compass Safe Distance: 30 cm (11.8 in)
• Cold Start: <60 s (no almanac or RTC)
• Warm Start: <20 s typical (almanac and RTC)
• Hot Start: <5 s typical (almanac, RTC and position)
• Heading Fix: <20 s typical (valid position)
• Maximum Speed: 1,850 kph (999 kts)
• Maximum Altitude: 18.288M (60,000')
• Interconnect Cable 15M(49')

Power

• Input Voltage: 8-36 VDC Power Consumption
• Power Consumption: 2.0 W nom.
• Current Consumption: 0.16 A @ 12VDC
• Power Isolation: Isolated to enclosure
• Reverse Polarity Protection: Yes

Mechanical

• Dimensions Not including mount: 29.9 L x 12.9 W x 4.5 H (cm)
• 10.2 L x 5.1 W x 1.8 H (in)
• Dimensions Including mount: 25.9 L x 12.9 W x12.8 (cm)
• 10.2 L x 5.1 W x 5.0 H (in)
• Provides position,heading,pitch,roll and heave
• Excellent in-band and out-of-band interference rejection
• 2° (RMS) heading accuracy in an amazingly small form factor
• Integrated gyro and tilt sensors deliver fast star-up times and provide heading updates during temporary loss of GPS and Satellites
• Differential position accuracy of 1m, 95% of the time
• Accurate heading for up to 3 minutes during GNSS outages
• COAST technology maintains differentially corrected positioning for 40 minutes or more after loss of differential signal
• Offered as a Serial or NMEA 2000 Version
